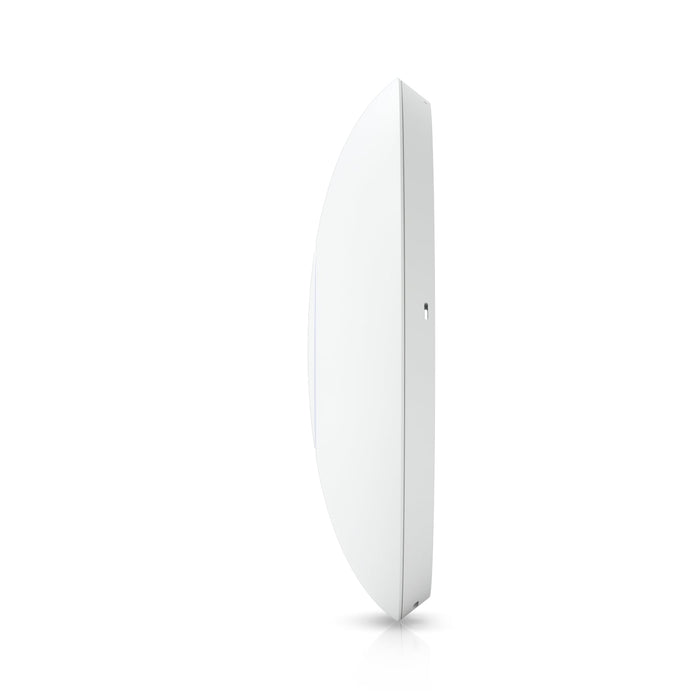

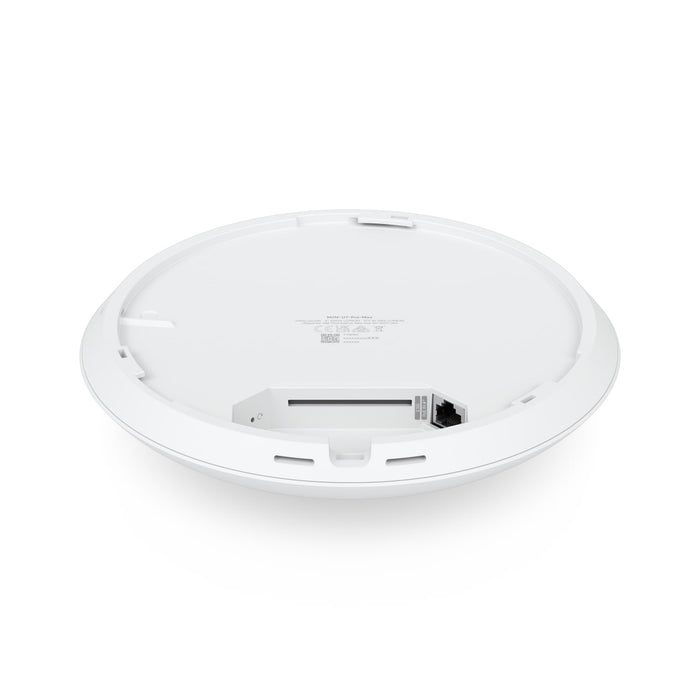

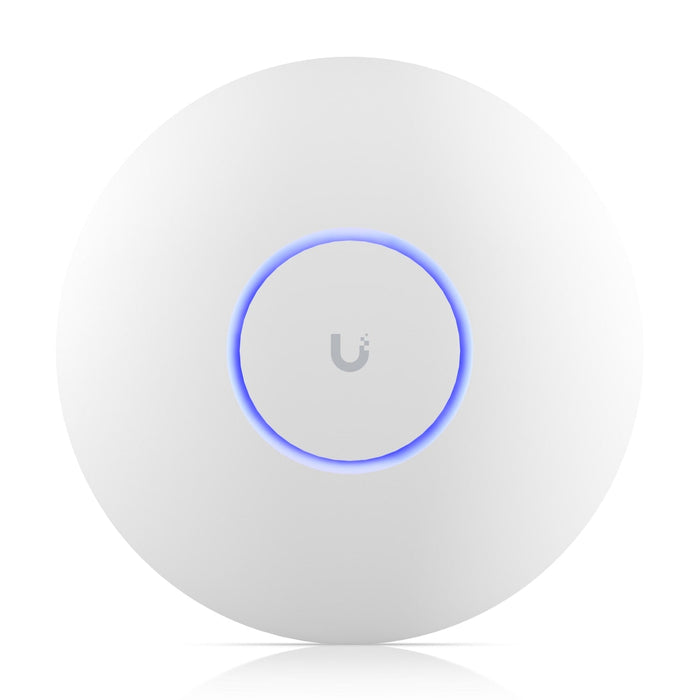

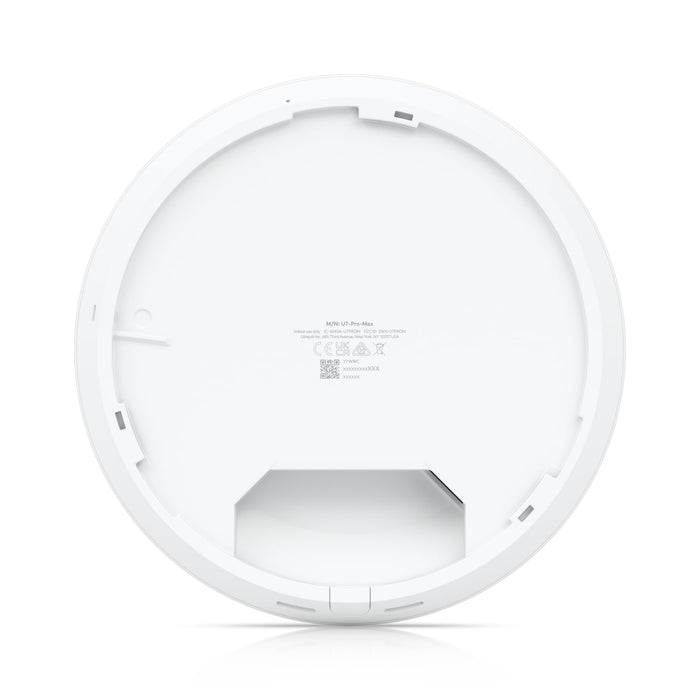

Ubiquiti U7-Pro-Max, Ceiling-mounted WiFi 7 AP, 8 Spatial Streams,6 GHz Support,2.5 GbE Uplink, 500+ Devices,For Large-scale Environments
Shipping cost is $11.90 (flat rate) under 5kg (excluding NT).
Shipping cost is $11.90 (flat rate) under 5kg (excluding NT).
The Ubiquiti U7 Pro Max is a high-performance, ceiling-mounted WiFi 7 access point engineered for the most demanding network environments. With support for 8 spatial streams, 6 GHz operation, and a dedicated real-time spectral scanning engine, this AP is optimized for interference mitigation and ultra-high client density. It's the ultimate solution for venues like enterprise offices, conference halls, and educational campuses needing fast, consistent, and interference-free wireless performance.
WiFi 7 (802.11be) with full support for the 6 GHz spectrum
8 spatial streams across 2.4 GHz, 5 GHz, and 6 GHz bands
Real-time spectral analysis for interference detection and intelligent channel selection*
160 m² (1,750 ft²) of high-performance wireless coverage
Supports 500+ concurrent clients
2.5 GbE uplink port for high-speed backhaul
Powered via PoE+ (802.3at) for simplified installations
Wall and ceiling mounting options included for versatile deployment
Multi-Link Operation (MLO) support coming via software update
*Requires UniFi Network version 8.2.93 or later
Designed for large spaces with heavy wireless demand, the U7 Pro Max delivers 14.9 Gbps of total aggregate throughput across all bands. It provides seamless client roaming, low latency, and enhanced channel efficiency, even when handling hundreds of active users.
Mechanical:
Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
Weight: 680 g (1.5 lb)
Enclosure: Polycarbonate, aluminium
Mounting Kit: Stainless steel (SUS304), galvanized steel (SGCC)
Mount Options: Wall or ceiling (both included)
Environmental:
Operating Temp: -30 to 50°C (-22 to 122°F)
Humidity: 5% to 95% noncondensing
Weatherproof: Indoor only
Hardware:
Network Interface: (1) 1/2.5 GbE RJ45 port
Power Method: PoE+ (44–57V DC)
Power Supply: PoE+ via UniFi switch (max consumption: 25W)
LEDs: White/Blue status LED
Button: Factory reset
Radio & Performance:
MIMO:
2.4 GHz: 2x2
5 GHz: 4x4
6 GHz: 2x2
Max TX Power:
2.4 GHz: 23 dBm
5 GHz: 29 dBm
6 GHz: 23 dBm
Max Data Rates:
2.4 GHz: 688 Mbps
5 GHz: 8.6 Gbps
6 GHz: 5.7 Gbps
Antenna Gain:
2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.9 dBi
WiFi Standards Supported:
802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)
Security & Software:
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN Support: 802.1Q
Guest Isolation: Supported
Advanced QoS: Per-user rate limiting
Concurrent Clients: 500+
Management Interface: UniFi Network (version 8.2.93 or later)
Supported Data Rates:
WiFi 4/5/6/7: Full range of modulation and coding schemes (MCS0–MCS13), including support for 20/40/80/160/240/320 MHz channel widths on applicable bands.
