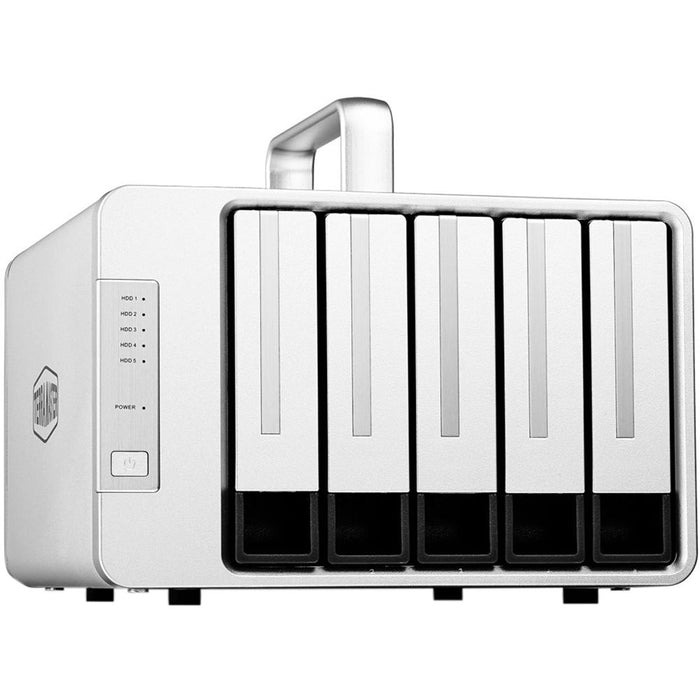

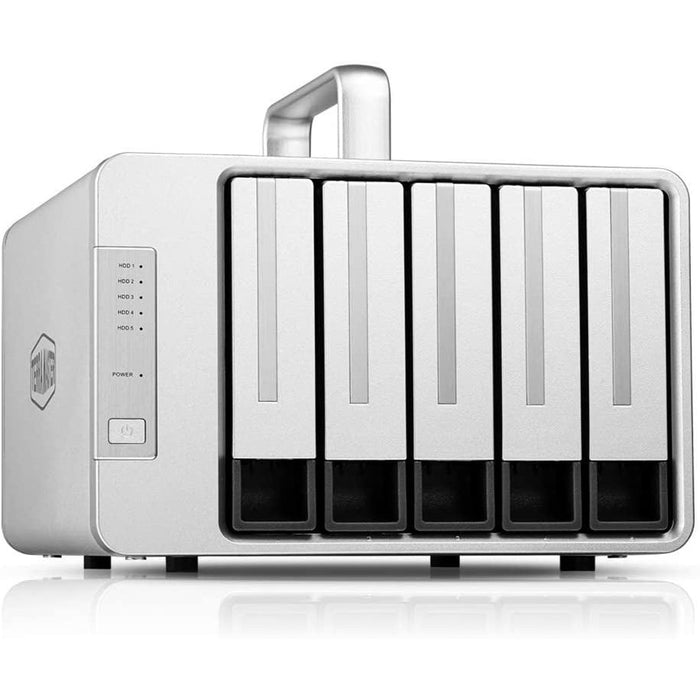

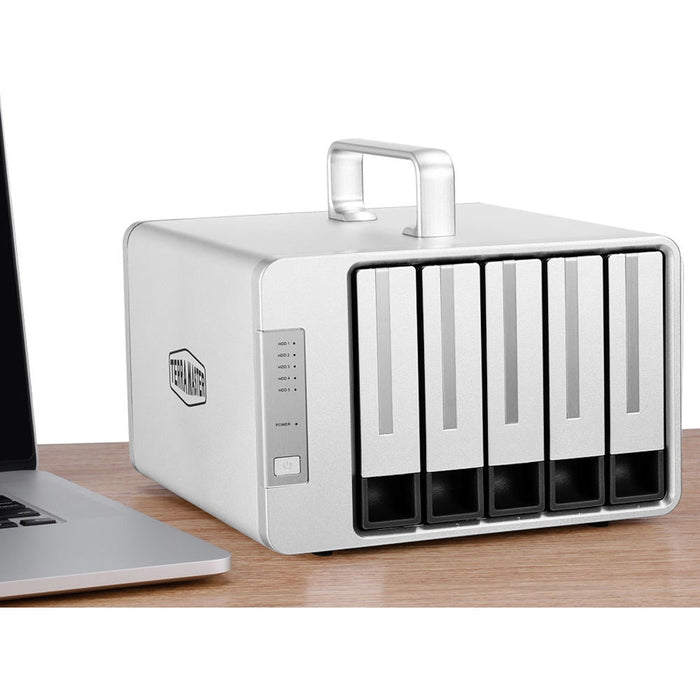

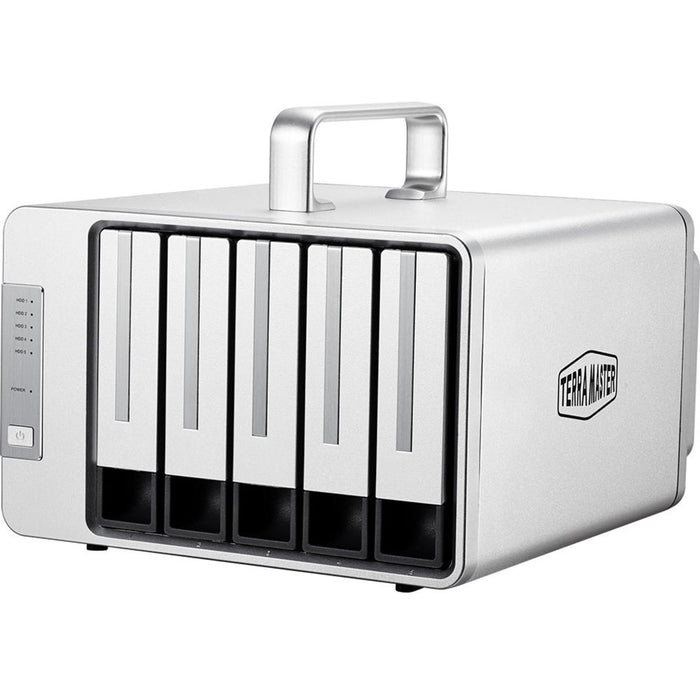

TerraMaster D5 Thunderbolt 3 5-Bay RAID Enclosure

SKU D5-THUNDERBOLT 3
by Terramaster
$1,164.99
$1,164.99 - $1,164.99
$1,164.99
$999.00
$999.00 - $999.00
$999.00
Sold out

This product normally ships within 1-2 weeks

Google Reviews
4.8 ★★★★★
679 reviews
Quality Score
4.8 ★★★★★
1,353 reviews
Trusted Platform
Secure Shopping
SSL Encrypted
Judge.me Verified
4.9 ★★★★★
2,511 reviews
Fast Shipping
Flat rate $11.90
under 5kg (ex NT)
Australian Owned
& operated
since 2005
Secure Checkout
100% protected
SSL encrypted
Expert Support
Email or
request a call back

Key Features

  • Up to 80TB Storage Capacity
  • 5 x 2.5" / 3.5" Drive Bays
  • 2 x Thunderbolt 3 Ports
  • RAID 0, 1, 5, 10, Single Disk, JBOD
  • Hardware Controller
  • 1035 MB/s Max Read Speed
  • 850 MB/s Max Write Speed
  • DisplayPort Connector

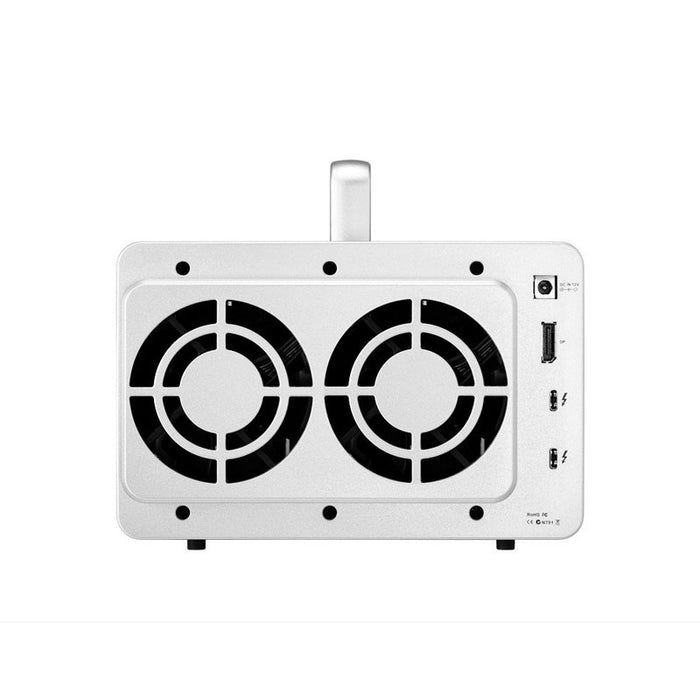

  • 2 x 80mm Cooling Fans
  • Supports Windows and Mac OS



Add up to 80TB of high-speed RAID storage to your professional video editing setup with the D5 Thunderbolt 3 5-Bay RAID Enclosure from Terra-Master. Designed for 4K video editing and streaming, the enclosure supports up to five 2.5" and 3.5" SATA drives in hardware-controlled RAID 0, 1, 5, 10, Single Disk, and JBOD configuration with a maximum throughput of up to 1035 MB/s MB/s in RAID 0 over your Thunderbolt 3 connection. You can expand your capacity further by daisy chaining up to six compatible devices together using the second Thunderbolt 3 port. Featuring two built-in 80mm temperature-controlled smart fans, this portable Windows and Mac-compatible aluminum desktop enclosure is designed for optimal heat dissipation during long video editing projects. Additionally, a DisplayPort interface is available for connecting external 4K monitors directly to the enclosure for large projects and efficient multitasking. The D5 Thunderbolt 3 supports up to three displays simultaneously.



High Capacity

The D5 Thunderbolt 3 supports up to five 2.5" and 3.5" drives for a maximum capacity of 80TB. Up to six Thunderbolt 3 devices can be daisy chained together.



Professional-Grade Speed

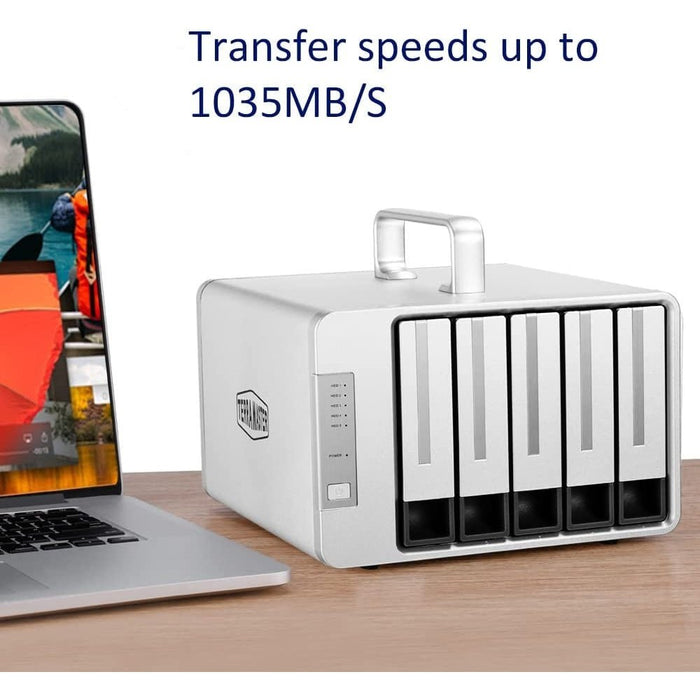

The high-speed RAID enclosure transfers data at up to 1035 MB/s in RAID 0 with a write speed of up to 850 MB/s over your 40 GB/s Thunderbolt 3 connection. Speeds of up to 1400 MB/s can be achieved in RAID 5.



Multi-Display Support

Up to three displays can be connected to the D5 Thunderbolt 3 through its DisplayPort and Thunderbolt 3 ports.



In the Box

  • TerraMaster D5 Thunderbolt 3 5-Bay RAID Enclosure
  • Power Adapter
  • Power Cord
  • Thunderbolt 3 Cable
  • Screw Pack
  • Limited 2-Year Warranty

General
Number of Bays 5 x 2.5"/3.5"

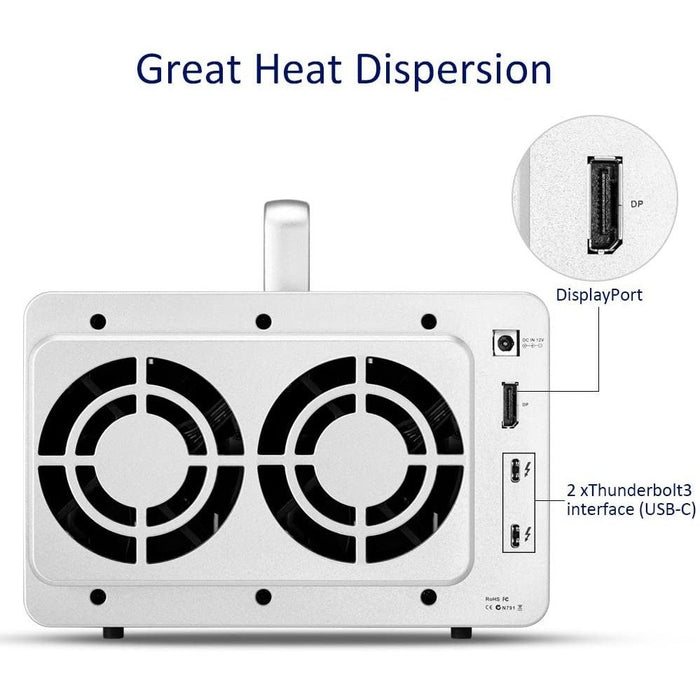

I/O 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x DisplayPort (DisplayPort 1.2)
Compatible Drive Interface SATA
Maximum Filled Capacity 80 TB
Form Factor Desktop
RAID RAID 0, 1, 10, 5, JBOD, Single

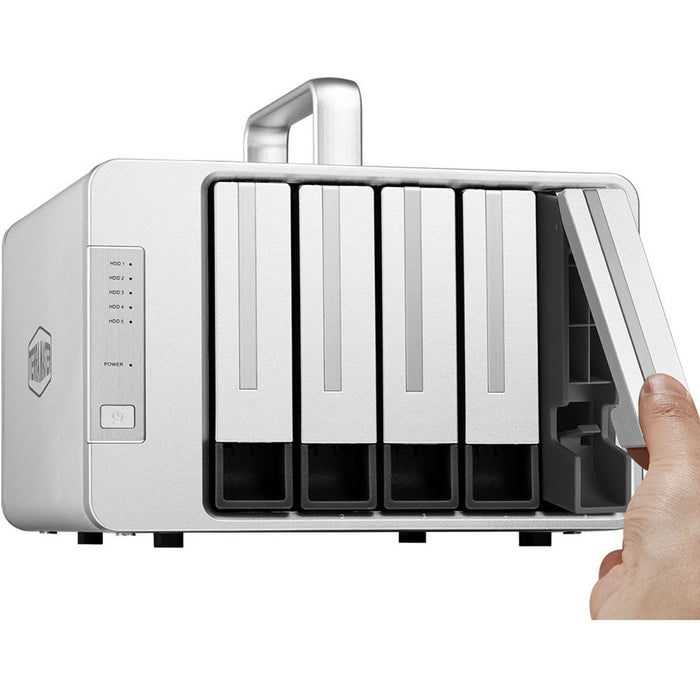

Hot-Swap Support Yes
Transfer Rates 1035 MB/s (Read in RAID 0)
850 MB/s (Write in RAID 0)
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 76.8 W
PSU Wattage 1 x 120 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Status Monitoring None
Cooling 2 x 80 mm Fans
Noise Level 19.8 dBA

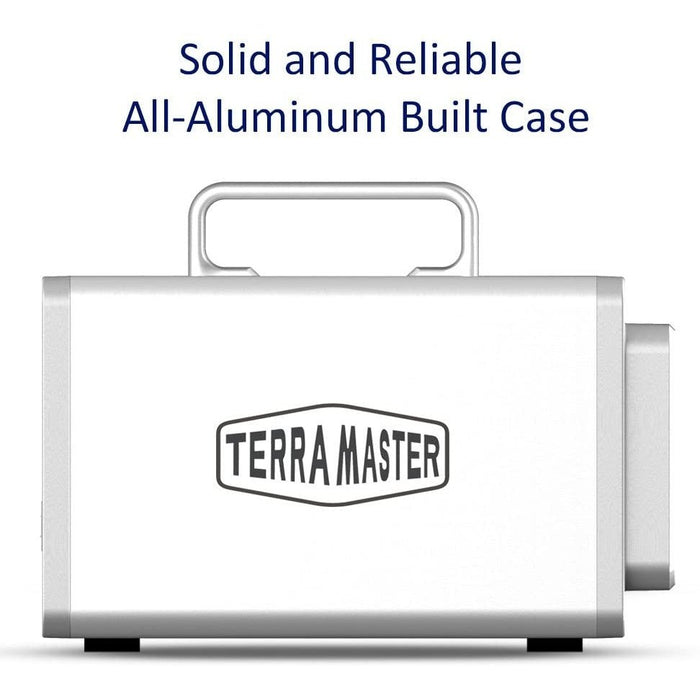

Material of Construction Aluminum
Dimensions 8.86 x 8.94 x 6.93" / 225 x 227 x 176 mm
Weight

5.1 lb / 2.3 kg
