Sonnet Thunderbolt 3 Upgrade Kit for the xMac mini Server

SKU SNT-BRD-UPGRTB3-XM
by Sonnet
$529.00 - $529.00
$529.00
$529.00 - $529.00
$529.00

This product normally ships within 1-2 weeks

Google Reviews
4.8 ★★★★★
679 reviews
Quality Score
4.8 ★★★★★
1,353 reviews
Trusted Platform
Secure Shopping
SSL Encrypted
Judge.me Verified
4.9 ★★★★★
2,511 reviews
Fast Shipping
Flat rate $11.90
under 5kg (ex NT)
Australian Owned
& operated
since 2005
Secure Checkout
100% protected
SSL encrypted
Expert Support
Email or
request a call back

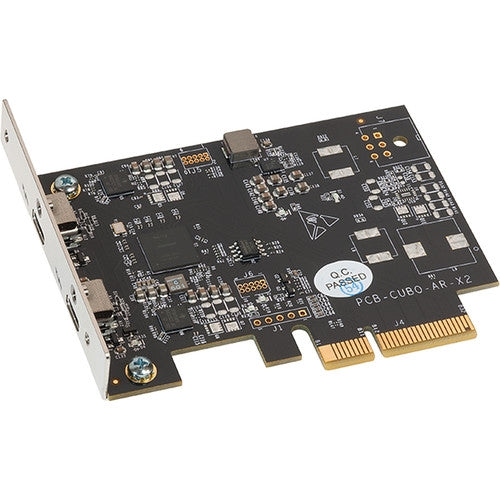

Designed for the xMac mini Server Thunderbolt 2 to PCIe Card Expansion System, the Thunderbolt 3 Upgrade Kit form Sonnet allows the 20 Gb/s Thunderbolt 2 interface board to be easily upgraded to 40 Gb/s Thunderbolt 3. Simply replace the existing Thunderbolt 2 interface board with the Thunderbolt 3 upgrade board, and your chassis will instantly support higher performance of Thunderbolt 3 and connect to your Thunderbolt 3 host without the need for an adapter. This PCIe card has two Thunderbolt 3 ports and includes a 1.6' Thunderbolt 3 cable, a ThunderLok 3 retainer clip, and a bracket.


General Features


Increased Bandwidth

This Thunderbolt 3 upgrade card provides increased bandwidth of 40 Gb/s. With an adapter, you are limited to Thunderbolt 2's 20 Gb/s bandwidth.


Thunderbolt 3 Daisy Chaining

This upgrade reaplces existing 20 Gb/s Thunderbolt 2 interface boards in your Thunderbolt 2 to PCIe card expansion system and card supports additional Thunderbolt 3 peripheral devices in the Thunderbolt chain with 40 Gb/s bandwidth. When using an adapter, all downstream peripherals in the Thunderbolt chain can only be Thunderbolt or Thunderbolt 2 devices.


Two Thunderbolt 3 Ports

While one port is reserved for interfacing with your host system, the other can be used for the daisy-chaining of up to five additional Thunderbolt devices, plus two 4K displays or one 5K display, or one USB device.


Connect USB Devices or Displays

Sonnet's Thunderbolt 3 upgrade card also provides 10 Gb/s USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. They also provide full support for connecting two 4K displays at 60 Hz or one 5K display at 60 Hz.


ThunderLok 3 Compatible

Sonnet's Thunderbolt 3 upgrade card supports the ThunderLok 3 Thunderbolt connector retainer clip. The included ThunderLok 3 secures the included Thunderbolt cable to the chassis, and is easy to install and use - just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok 3 remains on the cable so it won't get lost when not in use.


Compatibility

  • Mac mini (Late 2018, Model ID Macmini8,1)
  • macOS 10.14.4 and later
  • macOS Mojave compatible
