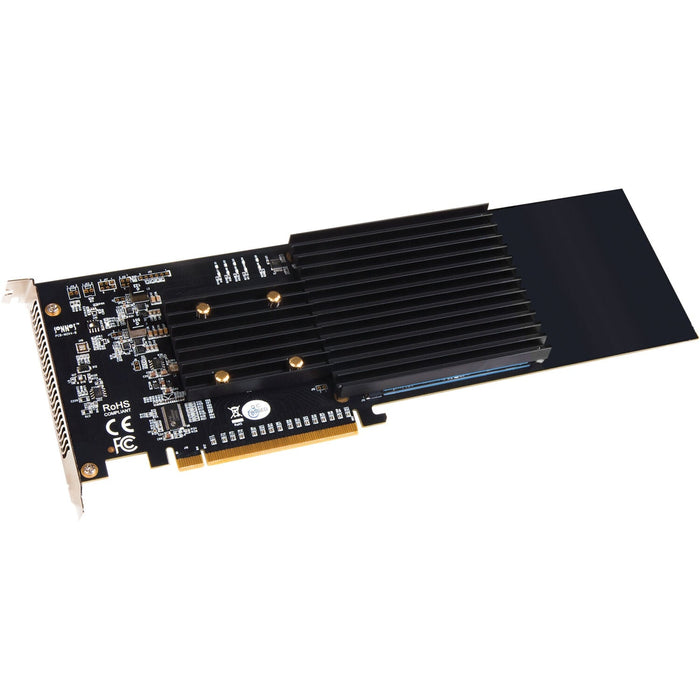

Sonnet M.2 4x4 PCIe 3.0 x16 Card for NVMe SSDs

SKU SNT-FUS-SSD-4X4-E3S
by Sonnet
$749.00
$749.00 - $749.00
$749.00
$699.00
$699.00 - $699.00
$699.00
Sold out

This product normally ships within 3-4 weeks

Google Reviews
4.8 ★★★★★
679 reviews
Quality Score
4.8 ★★★★★
1,353 reviews
Trusted Platform
Secure Shopping
SSL Encrypted
Judge.me Verified
4.9 ★★★★★
2,511 reviews
Fast Shipping
Flat rate $11.90
under 5kg (ex NT)
Australian Owned
& operated
since 2005
Secure Checkout
100% protected
SSL encrypted
Expert Support
Email or
request a call back

Expand your computer's storage capacity by installing the M.2 4x4 PCIe 3.0 x16 Card from Sonnet into an available PCI express x16 slot. There are four M.2 2280 NVMe PCIe sockets built onto this card, supporting up to 16TB of fast solid-state storage in RAID 0, 1, 5, or JBOD configurations. Sustained read speeds can reach up to 11,700 MB/s and with a 6100 MB/s maximum write speed in RAID 0, providing the performance needed for demanding tasks such as video editing, 3D modeling, design, and more. A custom designed cooling solution allows drives to maintain high performance during large file transfers without speed throttling. The self-contained card works with most motherboards with an available PCIe 3.0 x16 slot using macOS, Windows 10, and Linux operating systems alongside a wide variety of M.2 NVMe PCIe SSDs.

M.2 NVMe PCIe SSD Expansion

This M.2 4x4 card allows you to install up to four M.2 NVMe solid-state drives, for a total of 16TB, into a single PCIe x16 slot without needing additional drivers.

High-Speed Storage

The PCIe 3.0 x16 host bus interface and x16 PCIe bridge provide four lanes of bandwidth to each installed SSD for maximum performance. Sustained data transfer speeds in RAID 0 can reach up to 11,700 MB/s.

RAID Support

Connected solid-state drives may be put into RAID 0, 1, or 5 configuration.

Cool Operation

The M.2 4x4 card's custom cooling design allows it help avoid speed throttling during large file transfers.

Optimised for Thunderbolt 3

This PCIe card is compatible with Sonnet Thunderbolt 3 expansion systems, which can transfer up to 2750 MB/s through a single cable.

Key Features:

  • Adds Ultra-Fast SSDs to Your System
  • Achieve Sustained RAID 0 speeds up to 11,700 MB/s
  • Great Way to Add Up to 32TB of M.2 SSD Storage to Computers with Thunderbolt
  • macOS, Windows, and Linux RAID Support
  • macOS Boot Support from Single (non-RAIDed) SSDs
  • S.M.A.R.T. Support
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support from Sonnet
  • Designed in the USA

Package Contents

  • Sonnet M.2 4×4 PCIe Card
  • Thermal transfer pads
  • SSD mounting screws
  • Documentation

 Sonnet FUS-SSD-4X4-E3S Specs



General

  • Host Interface PCI Express 3.0 x16
  • M.2 4 x 2280 (PCIe (Unspecified))
  • RAID Modes RAID 0, 1, 5, JBOD
  • OS Compatibility: macOS 10.13.6 or Later
  • Windows 10
  • Linux 5.0 or Later





Physical

  • Audible Alarm No
  • Status Monitoring None

Packaging Info

  • Package Weight 1.175 lb
  • Box Dimensions (LxWxH) 14.7 x 6.4 x 2.3"
