Sonnet Echo 20 Thunderbolt 4 SuperDock

SKU SNT-ECHO-DK20-T4
by Sonnet
$829.00 - $829.00
$829.00
$829.00 - $829.00
$829.00

This product normally ships within 3-4 weeks

Google Reviews
4.8 ★★★★★
679 reviews
Quality Score
4.8 ★★★★★
1,353 reviews
Trusted Platform
Secure Shopping
SSL Encrypted
Judge.me Verified
4.9 ★★★★★
2,511 reviews
Fast Shipping
Flat rate $11.90
under 5kg (ex NT)
Australian Owned
& operated
since 2005
Secure Checkout
100% protected
SSL encrypted
Expert Support
Email or
request a call back

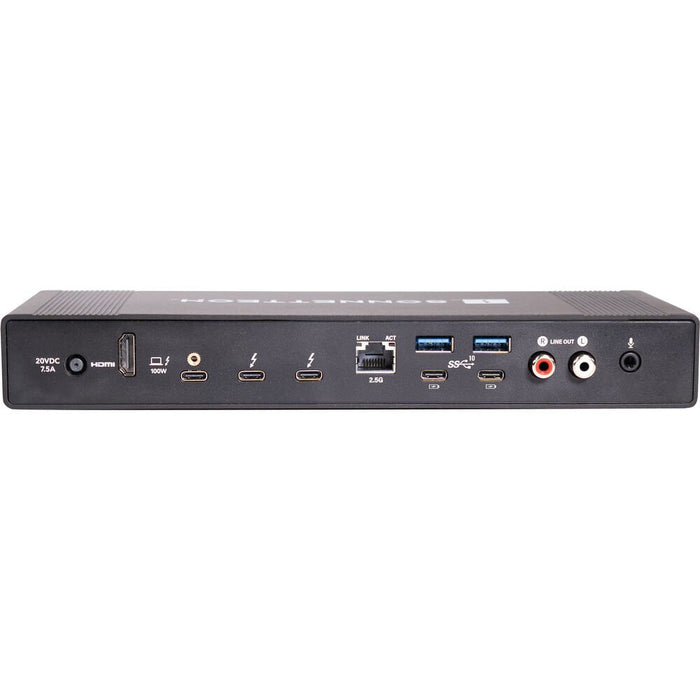

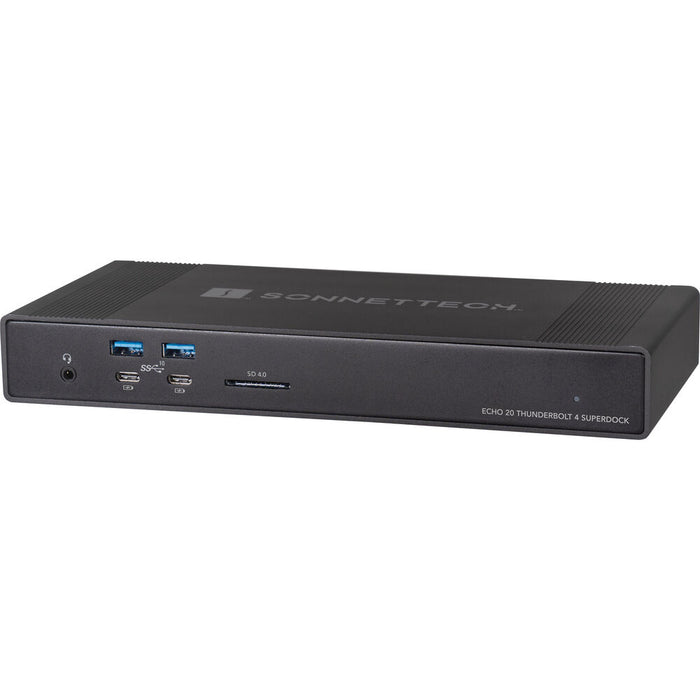

The Sonnet Echo 20 Thunderbolt 4 SuperDock utilizes Thunderbolt 4 to provide multiple ports and expansion options to your compatible computer with a single cable. Gain access to a variety of connections, such as Thunderbolt 4, USB 3.2 Gen 2, 2.5 GbE RJ45 LAN, 3.5mm audio jacks, and more. The HDMI 2.1 port allows you to connect an 8K @ 60 Hz display directly to the dock without the need for an adapter. There are also storage expansion options, such as the M.2 NVMe SSD slot and a SD 4.0 card reader.

HDMI 2.1, Thunderbolt 4, and USB 3.2 Gen 2
The built-in HDMI 2.1 port on the Echo 20 allows you to plug in an external display up to 8K @ 60 Hz directly. An HDMI adapter is not required to achieve max resolution. The Echo 20 also features three Thunderbolt 4 ports, one for connecting to your host device and the other two for directly connecting Thunderbolt peripherals and accessories. The two Thunderbolt 4 ports support USB4 and USB 3.2 devices and even provides up to 15W of power. Also available are four USB-A 3.2 Gen 2 and four USB-C 3.2 Gen 2 ports.


2.5 Gb Ethernet
Featuring 2.5 Gigabit Ethernet, the Echo 20 supports a 2.5 Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support. This saves you the trouble of having to invest in an Ethernet adapter. Need to connect to a switch without 2.5Gb Ethernet support? The Sonnet dock can also supports 1 Gb/s and 100 Mb/s link speeds.

M.2 SSD Slot
The built-in M.2 NVMe SSD slot enables you to add up to 8TB of SSD storage (sold separately) to your system without having to connect a storage device to your Echo 20 or upgrading your computer. Installing the SSD is easy and straightforward. Simply remove the two screws securing a bottom panel cover, insert the SSD, and reinstall the bottom cover with the two screws. Transfer and access data at up to 800 MB/s, and effortlessly store large files, media libraries, or your Time Machine backups.
Thunderbolt Certified

The Echo 20 is certified for use with Apple M series Macs, Thunderbolt 3 Intel Macs, Thunderbolt 4 and USB4 Windows computers, Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU, Thunderbolt 4 and USB4 Chromebook computers, and M series iPad Pro.

     Connections

    USB 3 x USB 3.1 / USB 3.2 Gen 2 Type-A
    1 x USB 2.0 Type-A
    Thunderbolt 3 x Thunderbolt 4
    Ethernet 1 x RJ45 (10/100/1000 Mb/s)
    FireWire None
    Display None
    Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Combo
    Memory Card Slots 1 x SDXC (UHS-II [312 MB/s])
    Host Connections
    System Connection 1 x Thunderbolt 4 Female
    Connection Type Detachable Cable
    Interface Max Data Rate 40 Gb/s
    General
    Operating System Support Windows, macOS/OS X
    UASP Support No
    Monitor Stand Support No
    Power
    Power Source AC Adapter
    Power Port Barrel Connector (Unspecified Diameter) (Input)
    Maximum Power Consumption 135 W
    Total Current Output 6.75 A
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2.37 A
    DC Input Power 20 VDC
    Environmental
    Certifications FCC, PSE, RoHS, UL, VCCI, as per Manufacturer
    Operating Temperature 32 to 95°F / 0 to 35°C
    Physical
    Cable Length 2.3' / 0.7 m
    LED Indicator Connection, Power
    Lock Slot No
    Dimensions 7.9 x 3 x 1.2" / 200.7 x 76.2 x 30.5 mm
    Weight 1.7 lb / 0.8 kg
