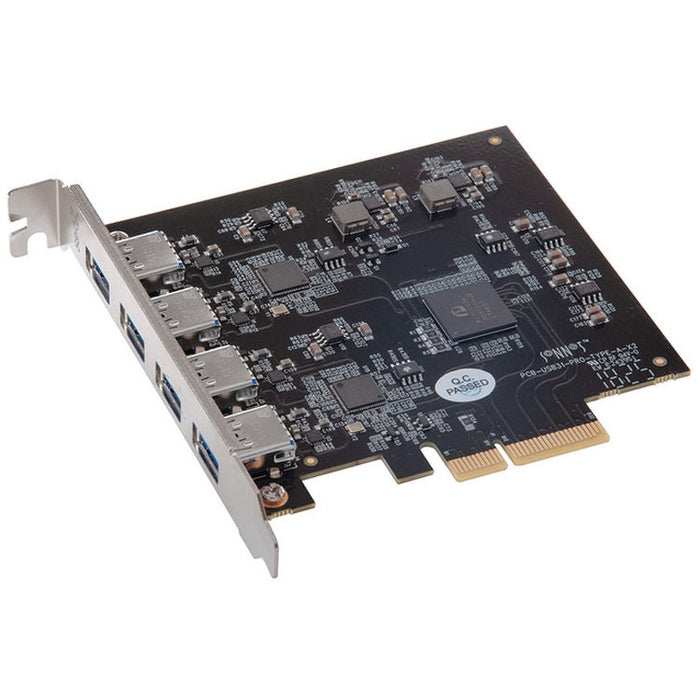

Sonnet Allegro Pro USB 3.1 4-Port SuperSpeed+ USB 3.1 Charging PCI Express 2.0 Card, Thunderbolt compatible.

SKU USB3-PRO-4P10-E
by Sonnet
$339.99 - $339.99
$339.99
$339.99 - $339.99
$339.99

This item normally ships within 3-4 weeks.

Google Reviews
4.8 ★★★★★
679 reviews
Quality Score
4.8 ★★★★★
1,353 reviews
Trusted Platform
Secure Shopping
SSL Encrypted
Judge.me Verified
4.9 ★★★★★
2,511 reviews
Fast Shipping
Flat rate $11.90
under 5kg (ex NT)
Australian Owned
& operated
since 2005
Secure Checkout
100% protected
SSL encrypted
Expert Support
Email or
request a call back

Sonnet Technologies

Allegro Pro
SuperSpeed+ USB 3.1 4–Port Charging PCI Express 2.0 Card

Mac / PC / USB 3.1 Gen 2 / PCIe

Add Four SuperSpeed+ USB 3.1 Connections to Your System
Don't settle for less
Your computer's USB 2.0 ports are perfectly adequate for connecting mice, keyboards, and printers, but if you need to connect external storage drives, USB 2.0 ports are underpowered in more ways than one–limiting data transfer speeds to around 25–30 MB/s, they can hardly be called "high performance". Most drives available today include USB 3.1 or USB 3.0 interfaces and offer significantly better performance than USB 2.0–equipped drives. Though you can connect them to your computer's USB 2.0 ports, their performance would be reduced by as much as 85 percent! Don't settle for slow performance–install a Sonnet Allegro Pro USB 3.1 4–Port card to instantly add four SuperSpeed+ USB 3.1 ports to your system to take full advantage of today's drives' performance capabilities.
Charge your devices using USB 3.0
Sonnet specially engineered the Allegro Pro USB 3.1 4–Port card to provide extra power through its ports without the need for you to connect an auxiliary power cable. Delivering up to 7.5W of power per port, this Sonnet solution supports USB 3.0 and USB 3.1 bus–powered hard drives, SSDs, DVDs & Blu–ray devices without the need to connect an additional AC power adapter. The Allegro Pro USB 3.1 card also supports the USB 3.0 charging specification that enables you to simultaneously charge and sync your iPad, iPhone, or other device that supports USB 3.0 charging!
Easy installation
The Allegro Pro USB 3.1 4–Port card features a PCIe 2.0 bus interface to take advantage of your computer's fast expansion card slots. This card installs easily into any PCI Express (PCIe) slot that supports a full–height card, features hot–pluggable and hot–swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB 3.1, USB 3.0 and USB 2.0 peripherals.
Optimized for Thunderbolt
Got a Thunderbolt connection, but no PCIe slot? The Allegro Pro USB 3.1 4–Port card is ideal for use in any Thunderbolt to PCIe card expansion chassis, offering full performance wherever you install it–now you can add SuperSpeed+ USB 3.1 charging connections any Mac with a Thunderbolt port.
Protected Power Delivery
Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects; resettable device overcurrent fuses protect the card and computer, and may be reset by a simple shutdown.
This Card Adds:
  • Four SuperSpeed+ USB 3.1 Ports

Requires:
  • Available PCIe Slot

See specifications below for system and/or OS compatibility information


Highlights
  • Adds SuperSpeed+ USB Connectivity— Adds four USB 3.1 ports to your system; transfers data up to twice as fast as USB 3.0 and 3.1 Gen 1
  • Super–Powered Ports— Supports USB 3.1 and USB 3.0 bus–powered hard drives, SSDs, DVDs & Blu–ray devices with up to 1.5A per port
  • Charging Ports— Supports USB 3.0 charging port handshake, and will simultaneously sync and charge iPads and other devices
  • Broad USB 3.1 and USB 3.0 Device Compatibility— Supports storage, hubs, and other USB–IF compliant USB 3.1 and USB 3.0 devices; compatible with USB 2.0
  • Supports Hot–Swappable Device Connection— Plug in and disconnect peripherals without shutting off your computer
  • Optimized for Thunderbolt— Provides maximum performance over Thunderbolt
  • Easy Installation— Quick and easy user installation into any available PCIe slot



This product is compatible with...Learn how to find your Mac's model ID
Mac Pro
Mac Pro 12-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
2.4GHz, 2.66GHz, 3.06GHz


Mac Pro
Mac Pro 6-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.33GHz


Mac Pro
Mac Pro 4-Core (Mid 2012)
(June, 2012)
Model ID: MacPro5,1
3.2GHz


Mac Pro
Mac Pro 12-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.66GHz, 2.93GHz



Mac Pro
Mac Pro 8-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.4GHz


Mac Pro
Mac Pro 6-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
3.33GHz


Mac Pro
Mac Pro 4-Core (Mid 2010)
(July, 2010)
Model ID: MacPro5,1
2.8GHz, 3.2GHz


Mac Pro
Mac Pro 8-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.26GHz, 2.66GHz, 2.93GHz



Mac Pro
Mac Pro 4-Core (Early 2009)
(March, 2009)
Model ID: MacPro4,1
2.66GHz, 2.93GHz, 3.33GHz


Mac Pro
Mac Pro 8-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz, 3.0GHz, 3.2GHz


Mac Pro
Mac Pro 4-Core (Early 2008)
(January, 2008)
Model ID: MacPro3,1
2.8GHz


PC Desktop
PC
PC running Windows, Linux or FreeBSD and available PCI-Express x4 lane or better slot

OWC Helios
OWC Mercury Helios
Thunderbolt PCIe
expansion chassis


Product Specifications:

Sonnet Technologies Part Number

  • USB3-PRO-4P10-E

Form Factor

  • PCIe computer card

Bus Interface

  • PCI Express 2.0 x4

Peripherals Supported

  • Industry standard USB 3.1, USB 3.0, USB 2.0, and USB 1.1 peripherals

Data Transfer Rate

  • USB 3.1 Gen 2 – 10 Gb/s

USB Charging

  • USB Battery Charging 1.2 Compliant (up to 7.5W per port)

Cables Supported

  • USB 3.1 with Standard–A male connector, USB 3.0 with Standard–A male connector, USB 2.0 with Standard–A male connector1

Compatibility

  • Mac Pro (with card slots)– OS X 10.8.5+ (macOS Sierra compatible)
  • PC desktop (with PCIe slots; PCIe 2.0 slots recommended)– Windows 8, 7, Windows Server 2012, 2008
  • Any Mac or PC with a Thunderbolt or Thunderbolt 2 port and a Thunderbolt–to–PCIe Card Expansion System

Number of Ports

  • 4 external

Bus Powered Peripherals Supported

  • HDs, SSDs, DVDs, and Blu–ray devices up to 1.5A per port

Hot Plug

  • Supports hot-pluggable and hot swappable device connection

Certifications

  • RoHS

Dimensions

  • 8.5" x 5.4" x 1.4" (21.6 x 13.7 x 3.6 cm)

Weight

  • 0.8lbs (0.36kg)


Notes:

  1. USB 3.1 devices require USB 3.1 cables to support USB 3.1 (SuperSpeed+) transfer speeds (up to 10 Gb/s) or USB 3.0 Cables to support USB 3.0 (SuperSpeed) transfer speeds (up to 5 Gb/s). Use of USB 2.0 cables between USB 3.1 devices and Allegro Pro USB 3.1 4–Port is supported, but data transfers are limited to USB 2.0 speeds (up to 480 Mb/s).


Manufacturer provided specifications for Sonnet Technologies p/n USB3-PRO-4P10-E UPC#: 732311012631
