Tame your workflow with this highly configurable productivity platform for digital imaging, VFX, video production, and video editing professionals. With unrivaled FLEXibility, you can choose drive type(s), enjoy docking convenience, and expand your capabilities with PCIe cards.

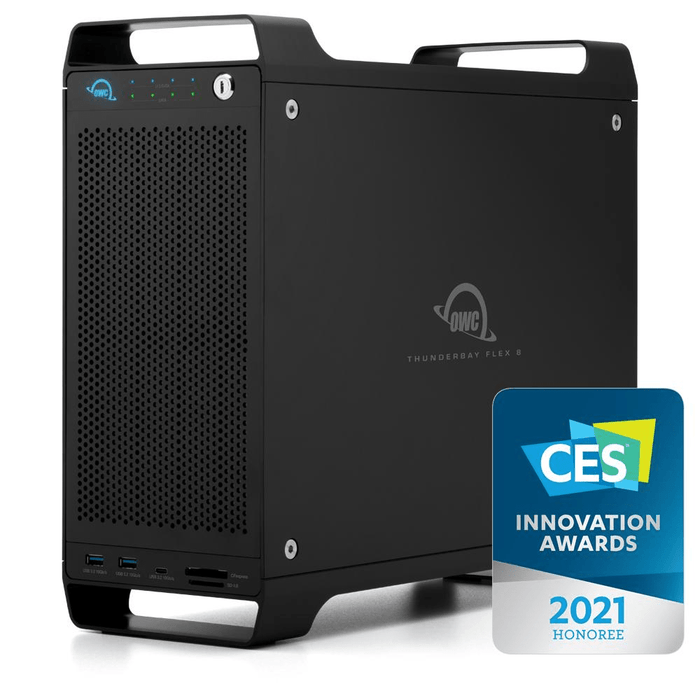

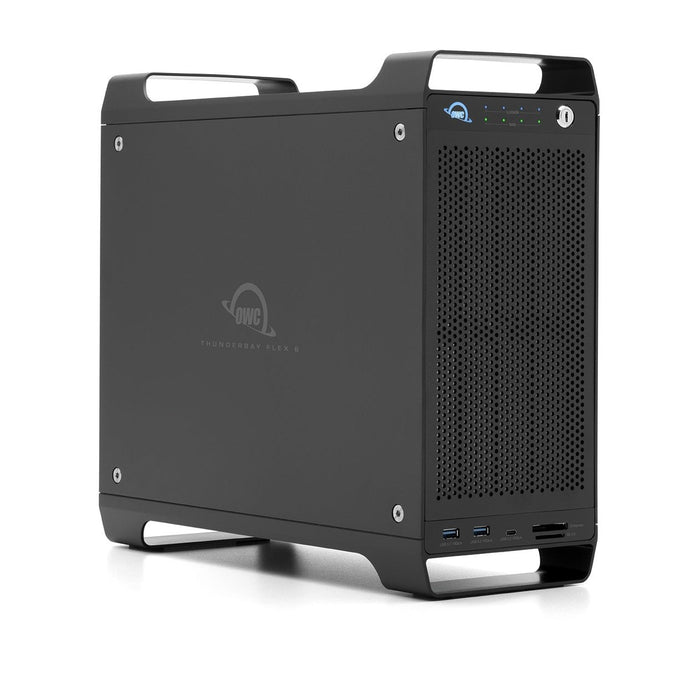

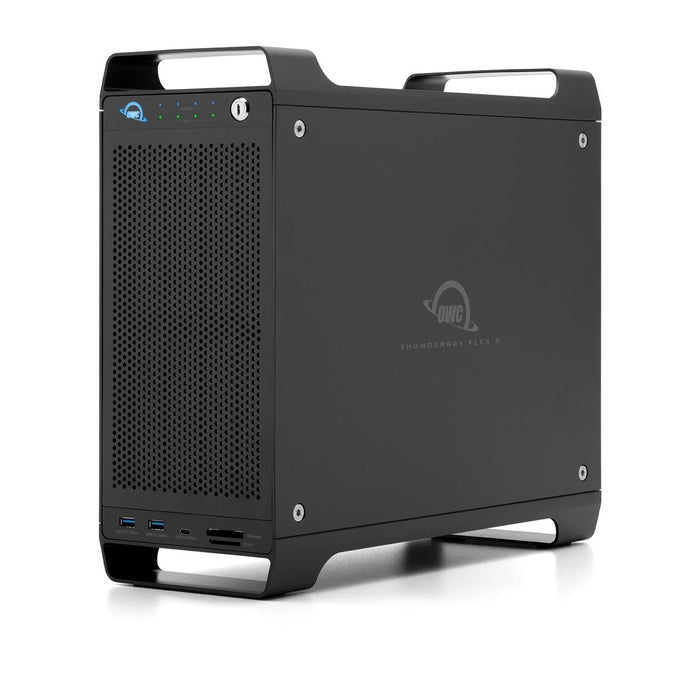

Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It’s a groundbreaking 3-in-1 workflow solution for digital imaging, VFX, video production, and video editing professionals from the world’s leading Thunderbolt accessory manufacturer.

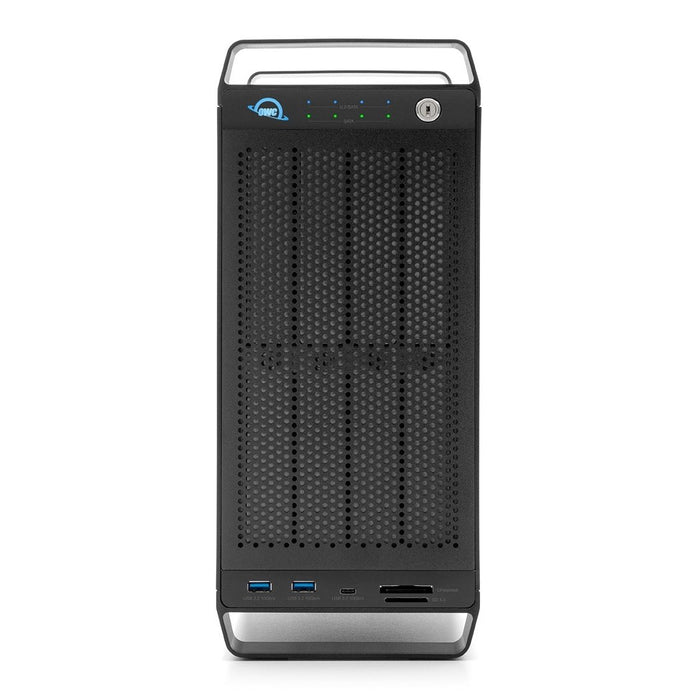

ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS and U.2/M.2 NVMe drives for virtually limitless storage capacity. Next, there’s a plethora of ports including (2) Thunderbolt 3, (1) USB-C, and (2) USB-A for device docking and charging.
See your work in greater detail by adding up to an 8K display via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there’s a PCIe slot waiting for your specific project needs.
ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology.
NVMe. PCIe. What’s It Mean to Me?
At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer’s processor.
Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying charging power.
The Future Standard of Storage Available Today
Right out of the packaging, all eight bays can utilize SATA 6Gb/s 2.5-inch SSDs or 3.5-inch HDDs. To take advantage of 40Gb/s PCIe technology, the top four bays are NVMe U.2 SSD ready. These emerging super-fast SSDs enable ThunderBay Flex 8 to meet the future storage needs of content creators and video production pros.
By installing an OWC U.2 NVMe Interchange System carrier tray (sold separately) with a built-in U.2 connector into a ThunderBay Flex 8 drive tray, you can protect the U.2 SSD drive’s connector from repeated install/removal wear for improved drive longevity and investment. When done with your shoot, just ship the lightweight protective carrier and drive to the lab where the carrier can be installed into an OWC Helios 3S equipped with the OWC Interchange System. It’s a complete solution to safeguard your data while lowering shipping costs.
Muscle-FLEXing Data Performance
Are you a video pro working with 4K/8K and even Phantom high-speed files? The ThunderBay Flex 8 offers a variety of drive configurations that deliver real-world read/write speeds of 2750MB/s that saturate the Thunderbolt 3 speed threshold. Try any of these options:
- A single U.2 NVMe SSD in Bay A
- Multiple U.2 SSDs installed in top four bays (A-D) in RAID 0
- Six or more SATA SSDs in any bays in RAID 0
- Swap out the built-in SATA drive controller card with a SATA/SAS hardware RAID card and configure 8 x SATA/SAS drives in hardware RAID 0
Done with the drives but need the docking connectivity? Eject the ThunderBay Flex 8 drives and any external drives in a single click with the free OWC Dock Ejector app. It ensures all data has been written before any drive is unmounted to protect against data loss. It will even warn you from accidentally ejecting an in-use drive.
Docking FLEXibility
A virtual buffet of productivity-enhancing possibilities awaits you with the docking connections built into ThunderBay Flex 8. Power your notebook with up to 85W power delivery while capturing multi-stream hi-res footage at full frame rate. Connect audio and video mixers, digital camera, keyboards, and other peripherals and charge mobile devices via one USB-C and two USB-A 10Gb/s ports. Ingest and work with 4/8K RAW video and RAW photo files immediately at speeds up to 985MB/s with frontside SD 4.0 and CFexpress card readers. Add more viewing space with up to an 8K monitor via the DisplayPort 1.4 interface. And if all that’s not enough to satisfy your project needs, daisy-chain up to five additional Thunderbolt 3 devices!
FLEXpandable for Unique Needs
By removing the enclosure’s side panel, you can expand your capabilities by installing a half-length, full-height, single-width expansion card in the PCIe x16 connector/x4 lanes slot. Add a 4K video capture card for direct ingest of multi-stream high-res footage. Record high-quality tracks with an audio card and then edit and archive tracks. Create a powerful file server with a high-speed networking card. By replacing the built-in SATA drive controller with a SATA or SAS RAID card, you can even turn ThunderBay Flex 8 into a hardware RAID storage solution while keeping a PCIe slot open for other cards.
A FLEXtraordinary Platform
ThunderBay Flex 8 is a user-configurable platform that you can use to launch into projects with a new realm of time and money-saving results. To get you started, we suggest three sample configurations that make the most of the extraordinary highlights that have made OWC solutions the choice of performance enthusiasts and cinematographers around the world:
- Plug and play with no drivers needed and includes Thunderbolt 3 cable
- Free lifetime expert support
- Worry-free ownership with up to 5 Year OWC Limited Warranty
Sample Configurations
-
FLEX Empty– An empty enclosure that lets you add your choice of drives and PCIe cards. You can remove the SATA drive controller card to add a RAID or SAS drive controller card.
-
FLEX Open – The bottom four bays populated with SATA drives and top four bays left empty for use with U.2 NVMe drives, M.2 NVMe drives with adapter, or SATA/SAS drives
-
FLEX Full - All bays filled with SATA drives, one bay left as cold spare, the other seven preconfigured in RAID 0 or RAID 5 with SoftRAID
Includes SoftRAID XT: Easy and Complete Drive Management
SoftRAID XT is the most powerful, intuitive software RAID utility on the market. Multiple RAID options let you select the RAID level that fits you or your project’s needs best. If you need maximum volume capacity, optimum drive performance, data protection, or a combination of attributes, SoftRAID has you covered.
Packed with features like drive validation, verification and failure prediction—SoftRAID includes features you simply don’t get with hardware RAID. It’s like having a datacenter on your desktop! From home users looking to protect photos and documents to professionals needing to protect and quickly access projects, SoftRAID is the perfect solution.
- Compatible: Works with macOS 11 Big Sur, M1 Macs and Windows 10
- Advanced: Create RAID 0/1/4/5/1+0 (10) with Macs, RAID 0/1 with Windows machines
- Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
- Validated: Volume validation ensures sectors can be read and parity is correct
- Certified: Checks disks before use to ensure they are safe for data storage
- Vigilant: Error prediction helps protect against unexpected failure
- Universal: Move SoftRAID arrays seamlessly between Macs and PCs with built-in OWC MacDrive technology
SoftRAID provides a level of performance that you simply can’t get with hardware RAID.
Learn more about the power of SoftRAID XT.
A Protective, Economical Post-Production Solution
Sending a drive from set to post-production typically entails tedious and time-consuming drive enclosure disassembly to access the storage drive or costly shipping of the entire enclosure to the post lab. But ThunderBay Flex 8 offers yet another option.
By installing an OWC U.2 NVMe Interchange System carrier tray (sold separately) with a built-in U.2 connector into a ThunderBay Flex 8 drive tray, you can protect the U.2 SSD drive’s connector from repeated install/removal wear for improved drive longevity and investment. When done with your shoot, just ship the lightweight protective carrier and drive to the lab where the carrier can be installed into an OWC Helios 3S equipped with the OWC Interchange System. It’s a complete solution to safeguard your data while lowering shipping costs.
End-To-End Workflow Possibilities
FLEX On-Set
- + OWC Interchange System Carrier Tray with SSD
- + OWC ThunderBay Flex 8
- Protects U.2 SSD drive connectors from install/ removal wear to improve drive longevity and extend your drive ROI.
Transit to Post
- + OWC Interchange System Carrier Tray with SSD
- + Small and economical. Ship only what you need.
- Lightweight protective carrier safeguards data while lowering shipping costs vs shipping the entire enclosure.
Post-Production Lab
- + OWC Interchange System Carrier Tray with SSD
- + OWC Helios 3S (sold separately)
- + OWC Interchange System (sold separately)
- Desktop U.2 NVMe SSD swappable storage for fast processing of footage.
OWC Thunderbolt 3 Cable Included
OWC ThunderBay Flex 8 comes with a certified 0.7 meter OWC Thunderbolt 3 cable, with other lengths from 0.5 meter to 2.0 meters available separately.
- SAS drives are supported with SAS drive controller card (available separately).
- Up to four U.2 drives are supported. M.2 drives are also supported with M.2 to U.2 adapter (available separately).
- Apple Mac models with Thunderbolt 2/Thunderbolt ports can be connected using an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- Full DisplayPort 1.4 capabilities depends on host computer support of DisplayPort 1.4 specification through its Thunderbolt 3 connection, host computer GPU capabilities, and connecting cable capabilities
Highlights
- Eight drive bays: use a mix of SATA/SAS and U.2/M.2 NVMe drives for virtually limitless capacity and real world speeds up to 2750MB/s
- Future ready: top four bays can use U.2 SSDs…the emerging M&E industry storage standard
- Powerfully easy RAID: create, manage, and monitor advanced RAID sets with SoftRAID
- Do more: second Thunderbolt 3 port for daisy chaining devices or additional display(s)
- See more: DisplayPort 1.4 for connecting up to an 8K display
- Fast media ingest: front-side SD 4.0 and CFexpress card readers with up to 985MB/s speed
- Play your card: (1) PCIe slot for audio/video capture, networking, SSD storage, hardware RAID card, or I/O card
Includes
- (1) OWC ThunderBay Flex 8 External Storage Enclosure
- (1) 0.7M Thunderbolt Cable
- (1) AUS Power Cable
- (2) Security Keys for Front Panel Lock
- (1) Hex Key
- (1) Quick Start Guide for OWC ThunderBay Flex 8
- (1) Quick Start Guide for OWC ThunderBay Flex 8
- (1) Assembly Manual & User Guide for OWC ThunderBay Flex 8
- (1) 3 Years of SoftRAID Premium Access (License located on device)
- (1) Quick Start Guide for OWC SoftRAID (Digital)
- 3 Year OWC Limited Warrant
