16.0TB OWC Gemini - Thunderbolt 3 Dock and Dual - Drive RAID Solution - Macfixit Australia

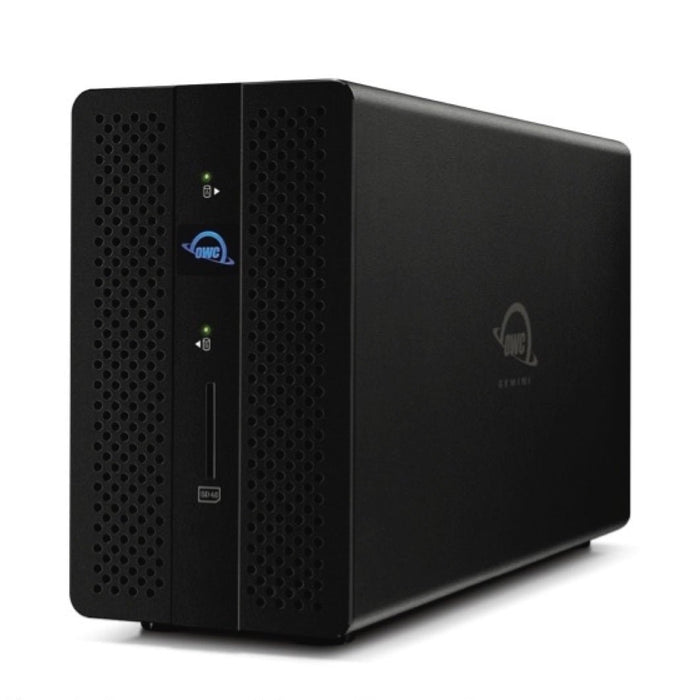

16.0TB OWC Gemini - Thunderbolt 3 Dock and Dual-Drive RAID Solution

SKU OWCTB3GM000H16
by OWC
$2,099.99 - $2,099.99
$2,099.99
$2,099.99 - $2,099.99
$2,099.99

This product normally ships within 1-2 weeks

Google Reviews
4.8 ★★★★★
679 reviews
Quality Score
4.8 ★★★★★
1,353 reviews
Trusted Platform
Secure Shopping
SSL Encrypted
Judge.me Verified
4.9 ★★★★★
2,511 reviews
Fast Shipping
Flat rate $11.90
under 5kg (ex NT)
Australian Owned
& operated
since 2005
Secure Checkout
100% protected
SSL encrypted
Expert Support
Email or
request a call back

OWC

Gemini
16.0TB Thunderbolt 3 Dock and Dual-Drive RAID Solution

Thunderbolt 3 / SATA 6.0GB/s / USB 3.1 / GbE / HDMI

Your Multitool for Digital Workflows
With dual drive bays, and seven connectivity ports including an SD 4.0 card reader, the OWC Gemini is the do-it-all tool that will organize your digital life. You’ll have plenty of room to duplicate footage, create and manage archives, or render and process effects. Connect your favorite peripherals via USB ports. Ingest the day’s shoot or drone footage with the frontside reader.
Configure to Your Unique Needs
You can customize the Gemini to quickly adapt to project changes and help you stay ahead of deadlines. Install your choice of 2.5-inch or 3.5-inch HDDs or SSDs and even combine the speed of a SSD and with the cost-effective storage capacity of a HDD. With built-in hardware RAID, you have four drive set-up choices:

  • Non-RAID to keep the drives as independent volumes
  • RAID 1 (mirror) for backup reliability
  • RAID 0 (stripe) for optimal performance and maximum speed or use
  • Span to combine the drive capacities into one huge volume for extra-large storage capacities

Done with the drives but need the connectivity? Just eject the RAID from your computer and the Gemini keeps you working smoothly.
Full Stream Ahead
The Gemini features a 1Gb Ethernet port to keep you connected at speeds that leave WiFi in the dust. A must-have for shared workflows and workspaces, Ethernet connectivity speeds up file transfers giving you an edge on your work in progress.
Professional Grade = Ready to Work
We understand having confidence in gear reliability is paramount to creative professionals. That’s why we subject every configured Gemini solution to a multi-step performance certification prior to shipping - ensuring it arrives operating properly and immediately ready for demanding use.
Disconnect in One Click
OWC Dock Ejector software safely disconnects drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your OWC Dock. Learn more and download the OWC Dock Ejector.
Highlights
  • Blazing-fast transfer speeds: (2) Thunderbolt 3 ports
  • Speed and storage: hardware RAID controller (RAID 0,1, Span or JBOD/Independent)

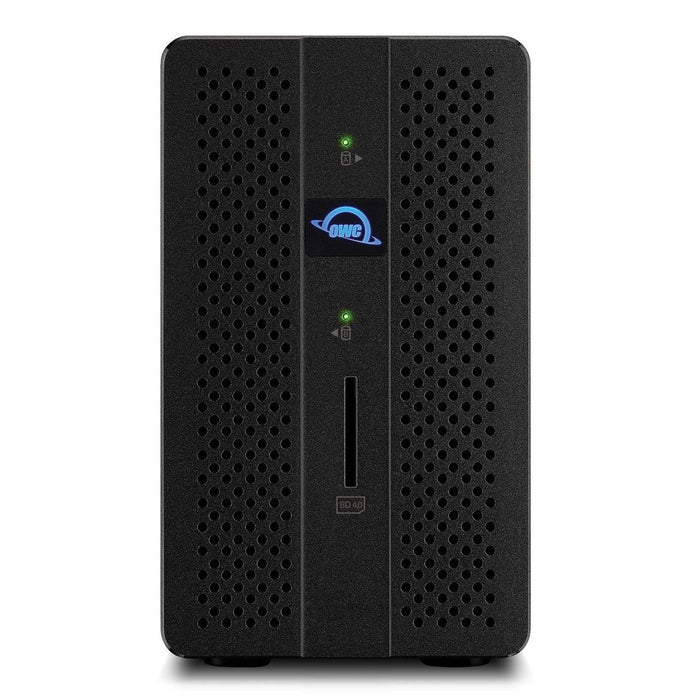

  • Easy camera uploads: frontside SD 4.0 (UHS-II) card reader
  • A hub of options: (2) USB 3.1 Gen 1 (Type-A) ports
  • Full steam ahead: 1Gb Ethernet port
  • See work in progress: HDMI for adding up to a 4K monitor
  • Custom configurations: (2) bays for 2.5-inch or 3.5-inch SATA drives
  • 3 Year OWC Limited Warranty



Includes

Product Specifications

Specifications
  • Mechanisms Supported
    • 2.5 inch and 3.5 inch SATA drives
  • Total Capacity
    • 16.0TB
  • Total Solution Cache Size
    • 512 MB
  • Standard Mechanism
    • (2) 8TB Toshiba MG06ACA Series 7,200RPM Enterprise Class Hard Disk Drives with 256 MB cache
    • *OWC reserves the right to replace or upgrade to equivalent or better components.
  • Display Support
    • Up to one 5K display @ 60Hz,
    • or one 4K display @ 60Hz,
    • or one 4K display @ 30Hz,
    • or two 4K displays @ 60Hz,
    • or one 4K display @ 60Hz and one 4K display @ 30Hz
  • Display Support by Port
    • Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
  • Bootable
    • Mac only
  • Hot Plug Support
    • Yes
  • Chipset
    • Thunderbolt (2): Intel JHL6540
    • Media Reader: Genesis Logic GL-3227
    • USB (2): Fresco Logic FL1100EX
    • Ethernet (1): Intel i210
    • SATA Controller: ASMedia AS
  • Drive Interface
    • SATA 6.0 Gb/s
  • Format
    • Unformatted (
  • Rotational Speed
    • 7,200RPM
  • RoHS Compliant
    • Yes
  • Certifications
    • CE
    • FCC
    • VCCI
    • BSMI
    • RCM
    • Thunderbolt™technology
  • Data Rate
    • Up to 40 Gb/s
  • Data Transfer Rate (Maximum)
    • Thunderbolt 3 : 40 Gb/s (or 5000 MB/s)
  • Ethernet Speeds (RJ-45)
    • 1Gb/s "Gigabit" (1000BASE-T)
    • 100Mb/s (100BASE-T)
    • 10Mb/s (10BASE-T)
RAID
  • RAID Capable
    • Yes
  • Default RAID Level
    • RAID 0
  • RAID Levels Supported
    • RAID 0
    • RAID 1
    • SPAN
    • JBOD
  • RAID Features
    • Hardware RAID
Compatibility
  • Mac OS Compatibility
    • macOS 10.14 Mojave
    • macOS 10.15 Catalina
    • macOS 11.x Big Sur
  • PC OS Compatibility
    • Windows 10 64-bit Edition
    • Windows Server 2016
  • Other Requirements
    • Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable. This configuration provides data transfer at Thunderbolt 2 speeds (up to 20Gb/s) but does not support notebook charging.
  • Host Port Requirements
    • Mac or PC with a Thunderbolt 3 port or later
    • Mac with Thunderbolt 2/Thunderbolt port (requires adapter)
  • Driver Required
Power
  • Power Supply
    • External UL-listed universal auto-switching power supply
  • AC Input
    • 100-240V, 50-60 Hz, 2.0
  • DC Output
    • +12V, 10A
  • Wattage
    • 120W Watts
  • External Power Adapter
    • Yes
  • Power Delivery
    • Provides up to 27 watts of power via Thunderbolt 3 to charge or reduce laptop and device battery draw.
Physical
  • Number of Bays
    • 2

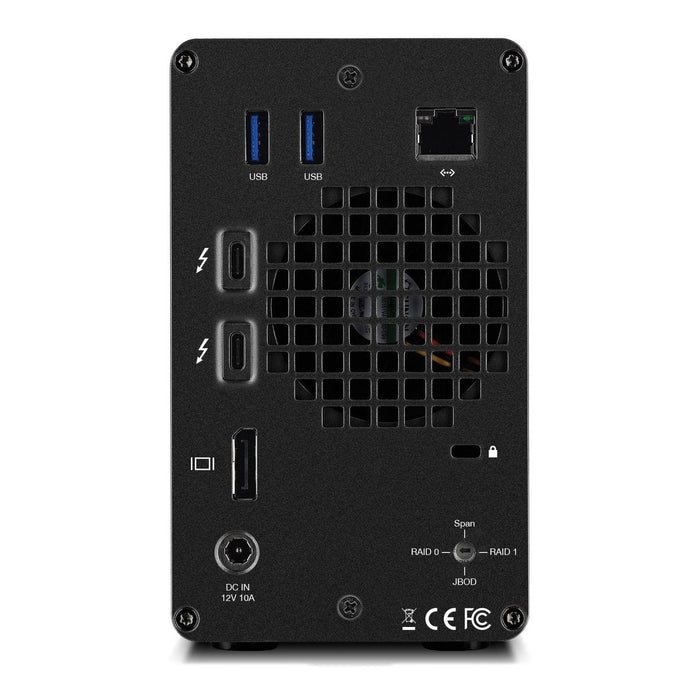

  • Device Ports
    • (2) Thunderbolt 3 (USB-C) Ports
    • (1) DisplayPort Port
    • (1) Gigabit Ethernet (GbE) RJ-45 Port
    • (1) 10/100 Base-T Ethernet RJ-45 Port
  • Memory Card Slots
    • (1) Secure Digital (SD)
  • Cooling
    • (1) 60mm 3,000RPM cooling fan
  • Security Slot
    • Yes
  • Housing Material
    • High quality aluminum for optimized heat dissipation
  • Color
    • Aluminum
  • Dimensions
    • Height: 14.7 cm (5.8 in)
    • Length: 23.8 cm (9.4 in)
    • Width: 8.5 cm (3.3 in)
  • Weight
    • 1.6 kg (3.53 lbs)
Environmental
  • Ambient Temperature
    • Operating: 41°F to 95°F (5°C to 35°C)
    • Non-Operating: -4°F to 140°F (-20°C to 60°C)
  • Altitude
    • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
    • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
  • Humidity
    • Operating: 8% to 90% non-condensing
    • Non-Operating: 5% to 95% non-condensing
  • Shock
    • Operating: Varies depending on drive mechanism installed
    • Non-Operating: Varies depending on drive mechanism installed
Acoustics
  • Noise
    • Varies depending on drive mechanism installed

Notes

  • This device has to be connected to the computer via Thunderbolt 3 and it cannot be used as a NAS. The Ethernet port provides the computer with an 1GbE network connection over Thunderbolt 3 but it cannot be used to access the data on the drives over the network.
  • When using 8TB or 10TB HDDs from Seagate and connecting the device to a PC running Windows, please make sure to first install the Windows driver. The DisplayPort does not support DP++. When using a DisplayPort to HDMI adapter, make sure to use an active adapter.
  • The DisplayPort on this device is not compatible with Apple Cinema Displays that require a Mini DisplayPort connection (2010, 2013 models). The display will not function even when connected via a DP > MDP adapter. This is a limitation of the Thunderbolt chipset in the Elite Pro Dock.
