Which adapter do I need for my Apple Cinema Display?

20-inch (A1081) needs the USB-C to DVI Adapter. 23-inch (A1082) needs the USB-C to DVI-D Single-Link Adapter. 30-inch (A1083) needs the USB-C to DVI-D Dual-Link Adapter.

Why does my 30-inch Cinema Display show a black screen or wrong resolution?

The 30-inch Cinema HD Display runs at 2560x1600, which requires a dual-link DVI adapter. A single-link adapter cannot carry that resolution, so you get no image or an incorrect mode. Use a USB-C to DVI-D dual-link adapter.

The display isn't detected. What should I check?

Ensure the Cinema Display's own power supply is connected, reseat the DVI and USB-C connections, try a different USB-C port, plug directly into the Mac rather than an unpowered hub, and use System Settings > Displays > Detect Displays.

Do I need to install drivers?

No. The adapters are plug-and-play on macOS with nothing to install.

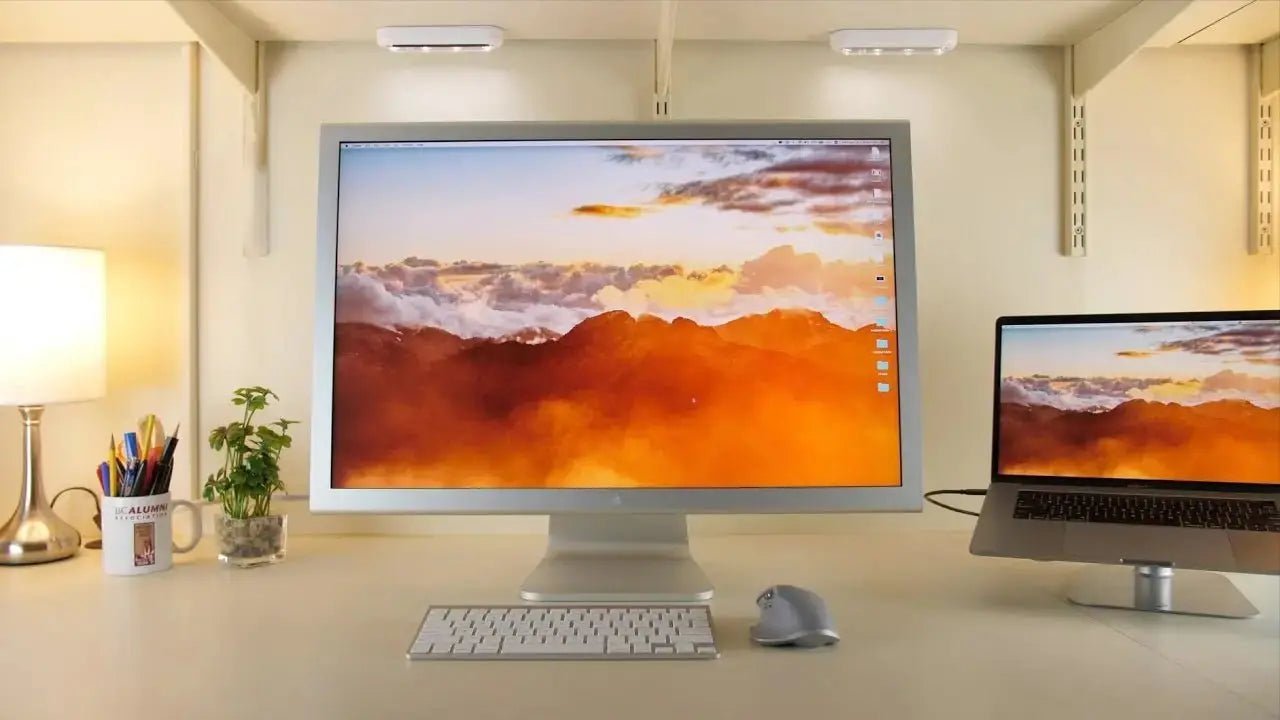

How to Connect an Apple Cinema Display to a USB-C Mac with MacFixit’s USB-C to DVI Adapter

Q: Will the USB and FireWire ports on the display still work?

The video adapter carries video only. The display's USB 2.0 and FireWire 400 hub uses its own separate cables to the Mac, which need appropriate USB-C and FireWire adapters on a modern Mac.

The Apple Cinema Display is still a joy to use — that aluminium design and lovely colour accuracy hold up beautifully years later. The catch is that every Cinema Display connects over DVI, and modern Macs only have USB‑C / Thunderbolt ports. The good news: with the right adapter you can have your Cinema Display running on a current Mac in a couple of minutes. The one thing that matters is picking the adapter that matches your display.

Which adapter do I need?

It comes down to which Cinema Display you own — specifically whether it uses a single‑link or dual‑link DVI connection. Match your display below:

For the 20″ display

USB‑C to DVI Adapter

20″ Aluminium Cinema Display (A1081) · 1680×1050 · single‑link DVI

$49.00Buy Now

For the 23″ display

USB‑C to DVI‑D Single‑Link Adapter

23″ Cinema HD Display (A1082) · 1920×1200 · single‑link DVI

$69.90Buy Now

For the 30″ display

USB‑C to DVI‑D Dual‑Link Adapter

30″ Cinema HD Display (A1083) · 2560×1600 · dual‑link DVI

$159.00Buy Now

Cinema Display compatibility at a glance

Cinema Display	Model	Resolution	DVI type	Adapter you need
20″ Aluminium	A1081	1680×1050	Single‑link	USB‑C to DVI Adapter — $49.00
23″ Cinema HD	A1082	1920×1200	Single‑link	USB‑C to DVI‑D Single‑Link — $69.90
30″ Cinema HD	A1083	2560×1600	Dual‑link	USB‑C to DVI‑D Dual‑Link — $159.00

All three displays also carry 2× USB 2.0 and 2× FireWire 400 ports on the built‑in hub, plus their own power supply.

Single‑link vs dual‑link: why it matters

This is the part people get caught out by. A single‑link DVI connection carries up to 1920×1200, which is plenty for the 20″ and 23″ Cinema Displays. The 30″ runs at 2560×1600 — beyond what single‑link can carry — so it needs a true dual‑link adapter to light up at full resolution.

Don't force it: a single‑link adapter physically plugs into a 30″ display but can't drive 2560×1600 — you'll get a black screen or a wrong/low resolution. For the 30″, use the dual‑link adapter above.

What you'll need

Your Apple Cinema Display with its DVI cable and power supply connected.
A Mac with a USB‑C or Thunderbolt 3/4 port.
The matching MacFixit adapter for your display (see the table above).

How to connect — step by step

Power up your displayConnect the Cinema Display to its power supply and switch it on. The steps are the same for all three displays — just use the adapter that matches yours.
Plug the adapter into your MacInsert the adapter's USB‑C end into any USB‑C / Thunderbolt port on your Mac. USB‑C is hot‑pluggable, so the Mac can stay on.
Connect the display's DVI cablePush the Cinema Display's DVI connector firmly into the adapter's DVI port and tighten the thumbscrews so the signal stays solid.
Let macOS detect itYour Mac should recognise the display within a few seconds. If it doesn't, open System Settings › Displays and click Detect Displays.

Troubleshooting & FAQ

Which adapter do I need for my Cinema Display?

20″ (A1081) → USB‑C to DVI Adapter ($49.00). 23″ (A1082) → USB‑C to DVI‑D Single‑Link Adapter ($69.90). 30″ (A1083) → USB‑C to DVI‑D Dual‑Link Adapter ($159.00).

My 30″ display shows a black screen or the wrong resolution — why?

The 30″ Cinema HD runs at 2560×1600, which requires a dual‑link DVI adapter. A single‑link adapter can't carry that resolution, so you'll see nothing or an incorrect mode. Switch to the USB‑C to DVI‑D Dual‑Link Adapter.

The display isn't detected at all. What should I check?

Make sure the Cinema Display's own power supply is connected and on, reseat both the DVI and USB‑C ends, and try a different USB‑C port on your Mac. Plug the adapter directly into the Mac rather than through an unpowered hub, then use System Settings › Displays › Detect Displays.

Do I need to install any drivers?

No. These adapters are plug‑and‑play on macOS — there's nothing to install.

Will the USB and FireWire ports on the display still work?

The video adapter carries the picture only. The display's built‑in USB 2.0 and FireWire 400 hub uses its own separate cables back to your Mac; on a USB‑C Mac you'd connect the display's USB cable via a USB‑C adapter, and FireWire would need a suitable FireWire‑to‑Thunderbolt adapter chain.

Why choose MacFixit?

We're Australian owned and operated and have specialised in keeping Apple hardware alive since 2005. Every adapter we list is matched to a specific Cinema Display and tested to work — so you can keep using a display you love with the Mac you own today, backed by local support from our certified technicians.

Ready to reconnect your Cinema Display?

Match your display above and you'll be up and running in minutes.
