RackMac Studio
3U Enclosure to Install and Secure One or Two Mac Studio Computers in a Standard 19-inch Rack.
Designed for professional workflows:
- Audio
- Video
- Color Grading
- Photography
- DITs
- Event Productions
- Broadcasts
Power Contained for your pro workflow
- Mac Studio™ computers deliver outrageous processing power, outperform computers multiple times their price, and are smaller than any tower computer available. But how do you incorporate them into off-the-desk professional workflows?
- Sonnet RackMac Studio integrates Mac Studio computers into a compact rackmount enclosure for diverse audio and video application needs
Control and Connect Easy Access to Mac Studio Computers

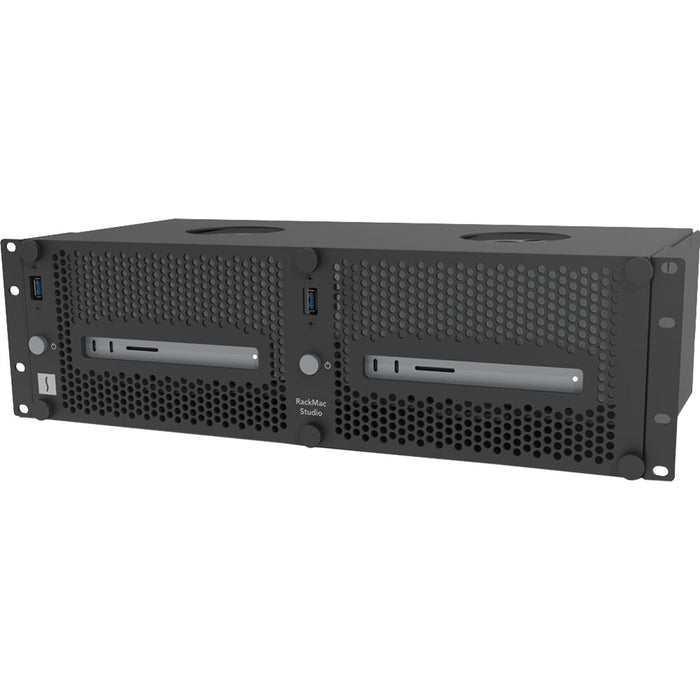

- RackMac Studio is a rugged steel 3U rackmount enclosure for securing one or two Mac Studio computers in a rack, placing them behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio computers on with their own dedicated front power buttons, connect USB devices through passthrough USB-A ports, and access the computers’ front ports and SD card slots. The RackMac Studio design enables you to connect and disconnect cables easily without needing to remove the computers from the enclosure.
- Openings on top of RackMac Studio ensure hindrance-free wireless signal access. The RackMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.
Cool Design Go with the Airflow – Supports the Mac Studio Thermal Design
- RackMac Studio secures your Mac Studios without trapping them in recirculating hot rack air, supporting their thermal design to keep them as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath each computer ensure the computers’ ability to draw in cool air through their bases, while a completely open back enables them to expel warm air out the back unimpeded.

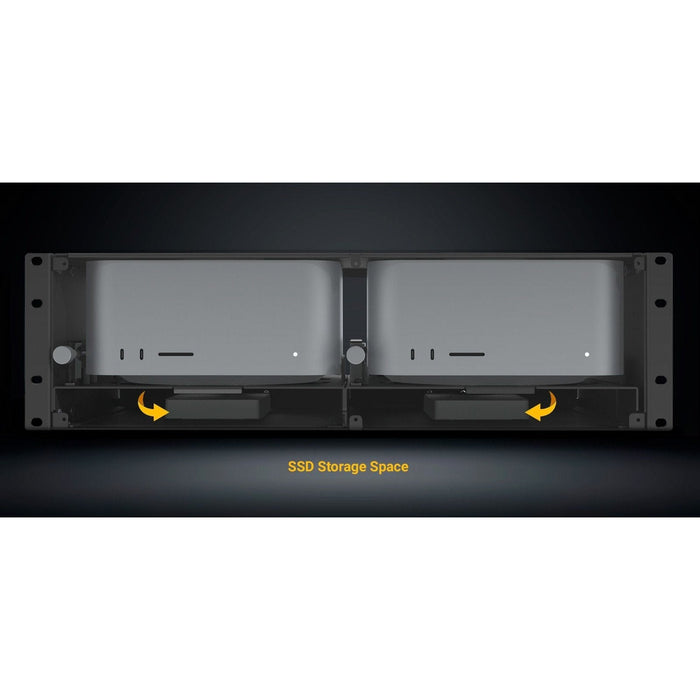

Space for SSDs Secure Thunderbolt or USB SSDs Under Each Mac Studio Computer

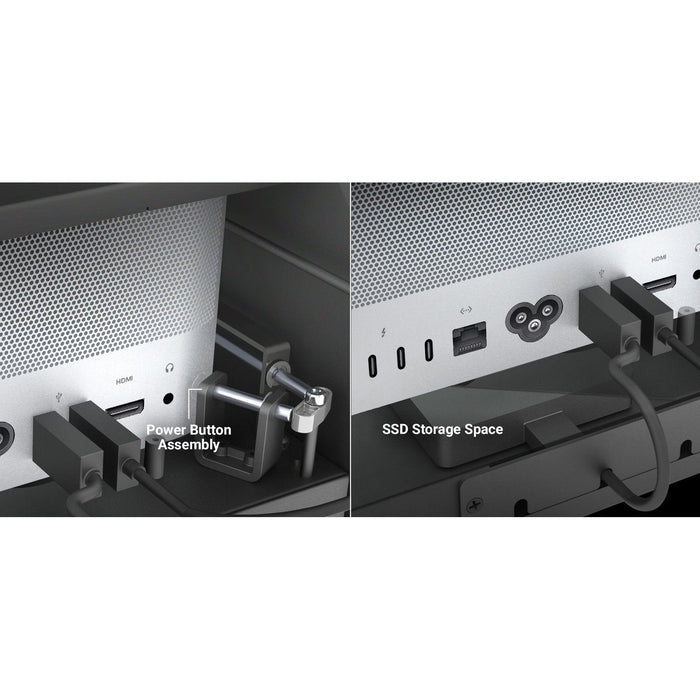

- RackMac Studio provides space beneath each Mac Studio computer to house Thunderbolt or USB SSDs (sold separately) up to 3.2 inches wide by 0.75 inch tall. Simply remove the rear access panel, apply the supplied adhesive-backed magnet to the bottom of an SSD, insert the SSD and connect it to the computer, and then reinstall the panel. The space is also suitable for other thin, bus-powered devices.
Road Trip Ready Workflows on the Go
- Do you need to take your workflow on the road? The RackMac Studio is a perfect travel solution. Its 9.5-inch mounting depth – plus firm rubber cushions that securely hold your Mac Studios in place during transport – make RackMac Studio ideal for use in shallow molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.
Key Features
- Rackmount Solution for Mac Studio
Secures one or two Mac Studio computers inside a compact and rugged steel enclosure.
- Ideal for Use in Server Rooms
3U height and standard mounting holes enable easy installation into any standard server rack.
Removable front panel secured with thumbscrews allows easy installation of and access to the Mac Studios with no tools required.

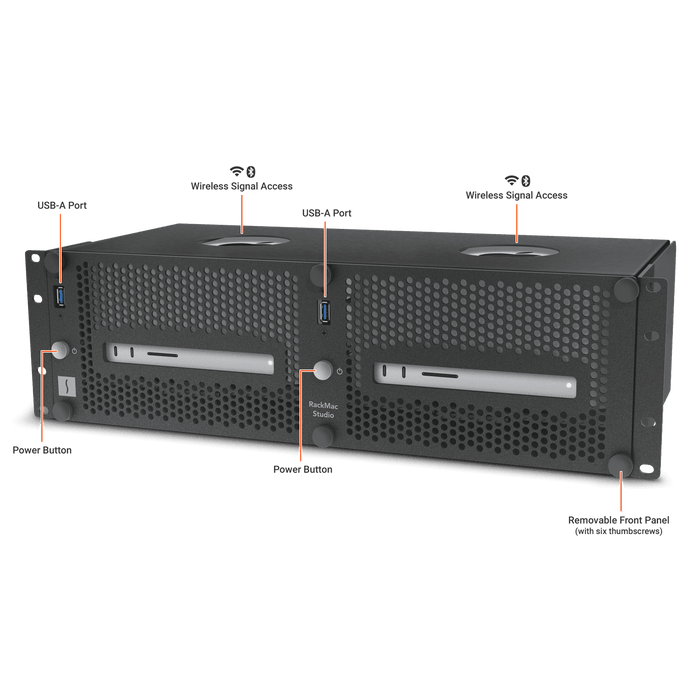

- Front Panel Power Switches and USB Ports
Front panel buttons enable easy operation of the Mac Studios rear-mounted power switches; USB-A ports enable connection of a USB peripheral to each computer.
Behind a covered opening beneath each Mac Studio is a space to place Thunderbolt or USB SSDs (sold separately); two included adhesive-backed magnets secure them in place.
- Open Slot and Port Access
Provides access to computers’ SD card slots and front and back panel ports, enabling you to connect and disconnect cables easily.
9.5-inch mounting depth plus firm rubber cushions that hold the Mac Studios securely in place during transport make RackMac Studio perfect for use in portable racks and shallow molded rack cases.
9.5-inch mounting depth plus firm rubber cushions that hold the Mac Studios securely in place during transport make RackMac Studio perfect for use in portable racks and shallow molded rack cases.
