Name: DIY Kit for all 2012 - 2019 27" iMac's factory HDD: 2.0TB OWC Mercury Electra 6G SSD
Brand: OWC
SKU: OWCK27IM12HE2TB
Price: 414.99 AUD
Availability: InStock

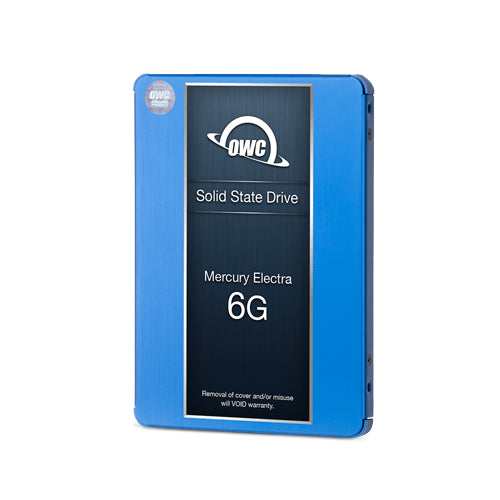

2.0TB Mercury Electra 6G SSD Specifications:

Specifications

Form Factor

Standard 7mm 2.5"

Interface

SATA 6.0 Gb/s

Capacity¹

2000GB Useable Capacity
Total Flash Memory Components: 2048GB
48GB Allocated to real-time data redundancy and error correction

Formatted Capacity¹

1863 GiB

RAID Support

Yes

SMART Attributes

Standard²

Native Command Queuing

Up to 32 simultaneous commands

RoHS Compliant

Yes

Reach Certification

Yes

Format

Unformatted

Physical

Height (max)

0.7 cm (0.3 in))

Width (max)

7.0 cm (2.8 in)

Length (max)

10.0 cm (3.9 in)

Reliability

MTBF (Mean Time Between Failures)

1,500,000 hours

Security

Secure Erase
TCG Opal
Chip Based Data Encryption: 256-bit AES-compliant

Error Correction

Built-in ECC

TRIM Support

OS Dependent

Endurance

681TB total bytes written (TBW), equal to 374 GB per day for 5 years

Nonrecoverable Read Errors

Less than 1 sector per 10¹⁵ bits read

Compatibility

Mac OS Compatibility

Yes

PC OS Compatibility

Yes

Other Requirements

Requires a Mac, PC, or drive enclosure with an available SATA drive bay. SATA III (6.0 Gb/s) required for best performance.

Performance

Sequential Read (Max)

Up to 540 MB/s

Sequential Write (Max)

Up to 500 MB/s

Random 4K Read

Up to 100,000 IOPS

Random 4K Write

Up to 90,000 IOPS

Power

Write Mode (Max)

Up to 2.1 Watts

Seek Mode (Max)

Up to 1.5 Watts

Idle Mode (Max)

Up to 0.085 Watts

Environmental (Operating)

Shock

1500 G max at 0.5 ms

Temperature (°F)

32°F to 158°F

Temperature (°C)

0°C to 70°C

Humidity

5% to 95% non-condensing

Environmental (Non-Operating)

Shock

1500 G max at 0.5 ms

Temperature (°F)

-40°F to 185°F

Temperature (°C)

-40°C to 85°C

Humidity

0% to 93% non-condensing

Acoustics

Idle (Typical)

0.0 bels

Seek (Typical)

0.0 bels

1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158F/70C. However, we are looking into supporting this feature in the future via a firmware update. Firmware updates can be found here:

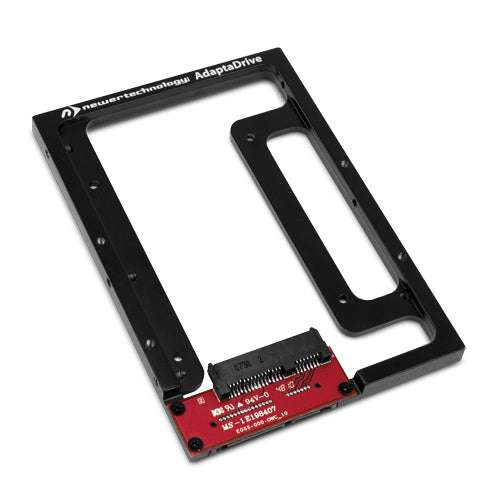

AdaptaDrive Specifications:

NewerTech Part Number

ADPTADRV

Drive Inteface

Fully SATA Revision 3.0 (6Gb/s) compatible
SATA Revision 2.0 (3Gb/s) and 1.0 (1.5Gb/s) compatible

Drive Supported

(1) 2.5" SATA 6Gb/s drive

Material

Black painted Aluminum

Dimensions

Height: 0.4 in (1.0 cm)
Width: 4.0 in (10.2 cm)
Length: 5.8 in (14.7 cm)

Weight (Without Drives

3.5 oz (99.2 g)

DIY Kit for all 2012 - 2019 27" iMac's factory HDD: 2.0TB OWC Mercury Electra 6G SSD
