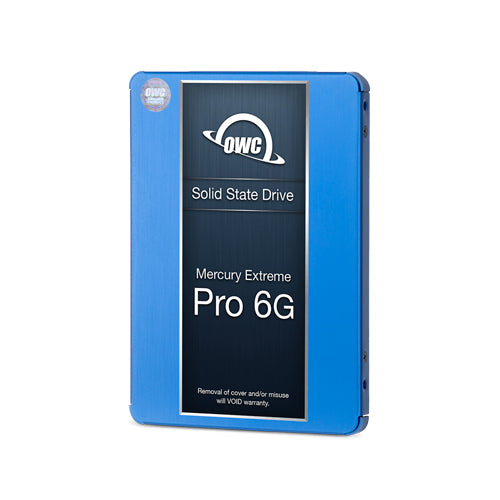

Name: DIY Kit for all 2012 - Mid 2019 27" iMac's factory HDD: 480GB OWC Mercury Extreme Pro 6G SSD.
Brand: OWC
SKU: OWCK27IM12HP480
Price: 234.99 AUD
Availability: InStock

Specifications

Controller

Phison PS3112-S12 with 7% over-provisioning

NAND

Synchronous Triple-Level Cell (TLC) 3D NAND Flash

Form Factor

2.5-inch 7mm

Interface

SATA 6.0 Gb/s

Capacity

480GB useable capacity
Total Flash Memory Components – 512GB
32GB allocated to real-time data redundancy & error correction

Formatted Capacity

447GiB

RAID Support

Yes

SMART Attributes

Standard attributes supported

Native Command Queuing

up to 32 commands

Manufacturer Model Number

S3D7P6G480

RoHS Compliant

Yes

Format

Unformatted

Physical

Height (max)

0.7 cm (0.3 in)

OWC 7mm – 9.5mm Adapter

1 included

Width (max)

7.0 cm (2.8 in)

Length (max)

10.0 cm (3.9 in)

Weight

77.0 g (0.17 lbs)

Reliability

Data Reliability

Built-in BCH ECC: Up to 66 bits correctable per 1024 bytes

Nonrecoverable Read Errors

Less than 1 sector per 10¹⁶ bits read

Performance

Sequential Reads (Max)

Up to 550 MB/s

Sequential Writes (Max)

Up to 530 MB/s

Sequential 4K Read

Up to 100,000 IOPS

Sequential 4K Write

Up to 90,000 IOPS

Power

Active

Write: 2000mW (2.0W) Maximum draw

Environmental (Operating)

Altitude

-304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)

Temperature (°F)

32°F to 158°F

Temperature (°C)

0°C to 70°C

Environmental (Non-Operating)

Altitude

304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Temperature (°F)

-40°F to 185°F

Temperature (°C)

-40°C to 85°C

Acoustics

Idle (Typical)

0.0 bels

Seek (Typical)

0.0 bels

1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.

DIY Kit for all 2012 - Mid 2019 27" iMac's factory HDD: 480GB OWC Mercury Extreme Pro 6G SSD.

480GB Mercury Extreme Pro 6G SSD Specifications:

Specifications

Physical

Reliability

Performance

Power

Environmental (Operating)

Environmental (Non-Operating)

Acoustics

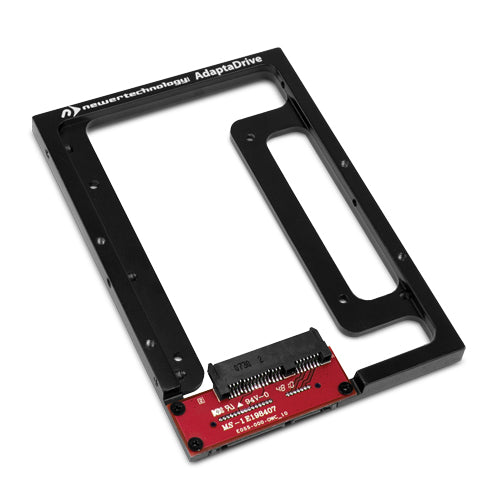

AdaptaDrive Specifications:

NewerTech Part Number

Drive Inteface

Drive Supported

Material

Dimensions

Weight (Without Drives

Manufacturer Information

Manufacturer P/N

UPC / EAN
