Description

OWC

U2 Shuttle
4.0TB 3.5-inch NVMe U.2 SSD

Create a swappable high capacity flexible RAID-ready storage solution in a single 3.5-inch drive bay

World’s first NVMe U.2 shuttle drive for 3.5-inch bays

Boldly Goes Where No Drive Has Gone Before

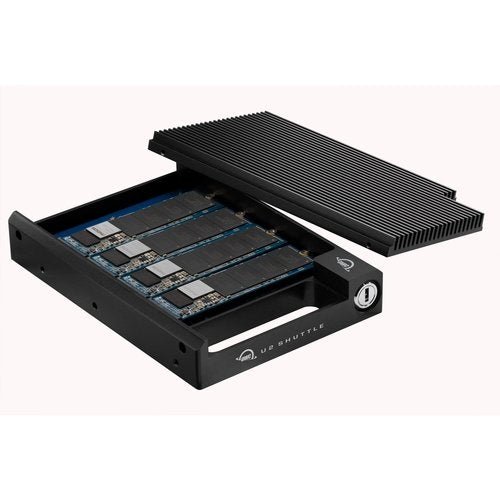

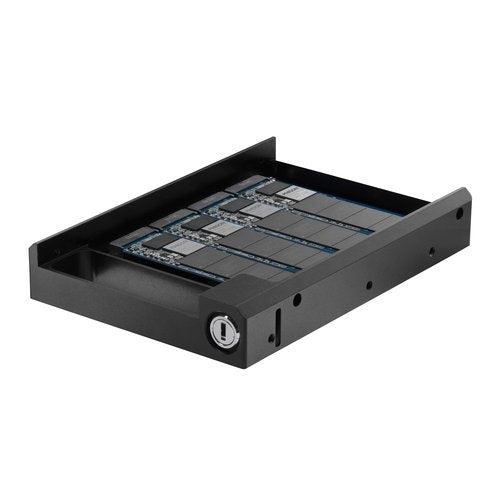

Blistering speed. Massive capacity. RAID-ready flexibility. Swappable convenience. Everything you’ve wanted in a multiple blade SSD but couldn’t get until now. The OWC U2 Shuttle is the world’s first U.2 shuttle drive for 3.5-inch drive bays that combines four NVMe M.2 SSDs. Built for OWC storage and PCIe expansion solutions, this innovative carrier shuttle can also be used with U.2 port equipped PCs and servers.

More RAID Options

With four NVMe SSDs, the OWC U2 Shuttle gives you more RAID options than a dual drive enclosure or adapter card. Now you can harness the power of RAID 0, 1, 4, 5 or 10 via your choice of RAID utilities including SoftRAID, the easiest to use, most fully featured software RAID package available. This powerful and intuitive software RAID utility offers maximum volume capacity, optimum drive performance, data protection, or a combination of attributes. It’s ideal for anyone who needs to safely store and backup massive amounts of data including video editors, audio producers, photographers and graphic designers.

Ideal for Media Production Workflows

Imagine… no more tedious and time-consuming drive enclosure disassembly or costly shipping of an entire enclosure to get a day’s shoot to post-production. By utilizing a U.2 port equipped OWC solution or PC with an available 3.5-inch drive bay on both ends of the workflow, you can simply ship the compact and lightweight U2 Shuttle to the post lab where it swaps in quickly and economically.

NVMe Server Ready

When your resource heavy server application has to complete thousands of operations per second, the OWC U2 Shuttle preconfigured with OWC Aura P12 Pro SSDs has the chops to keep up. High-performance 3D NAND with SLC caching and a Phison E12 controller with 7% over-provisioning ensure fast and smooth access to large volumes of data. Preconfigured U2 Shuttles are also optimized for the best and longest working life. From running double checks on data and correcting errors to ensuring the uniform use of its flash media, Aura P12 Pro equipped U2 Shuttles are calibrated for endurance as a factory pre-set.

Highlights

Ideal for media workflows: dramatically lowers production to lab shipping costs vs shipping larger, heavier drives
RAID ready: RAID 0, 1, 4, 5, or 10 for speed, protection, or the best of both attributes
Compatible: use with OWC Helios 3S, ThunderBay Flex 8, as well as in a computer with U.2 support and an available 3.5-inch drive bay
Easy Swaps: move between OWC U.2 devices as well as PCs, enclosures, and servers
Secure: key lock for data security compliance

Includes

(1) 4.0TB U2 Shuttle
(2) Keys
(1) Quick start guide
3 Year OWC Limited Warranty

Specifications

Product Specifications

Specifications

Mechanisms Supported
- NVMe M.2 2280 M-Key SSDs
Standard Mechanism
- (4) OWC 1.0TB Aura P12 Pro NVMe M.2 SSDs
- *1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
- **OWC reserves the right to replace or upgrade to equivalent or better components.
Hot Swap Support
- Yes
Chipset
- Asmedia ASM2812X
Capacity
- 4.0 TB
Formatted Capacity
- 3725 GiB
Form Factor
- 3.5-inch U.2
Interface
- PCIe 3.0 X4, NVMe 1.3
RAID Support
- Yes
Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI
Data Rate
- Max PCIe Bandwidth: 8GT/s (64GB/s)
Plug and Play
- Yes

RAID

RAID Capable
- Yes
RAID Levels Supported
- RAID 0
- RAID 1
- RAID 4
- RAID 5
- RAID 10
- SPAN
- JBOD
RAID Features
- Software RAID

Compatibility

Mac OS Compatibility
- Varies by host device
PC OS Compatibility
- Varies by host device

Power

Power Supply
- Bus-powered

Physical

Drive Bays
- 4 bays supporting:
- M.2 drives
Housing Color
- Black
Housing Material
- Aluminum
Color
- Black
Dimensions
- Height: 2.3 cm (0.9 in)
- Length: 14.6 cm (5.7 in)
- Width: 10.2 cm (4.0 in)
Weight
- 426.0 g (0.94 lbs)
LED Indicators
- Activity
Output Connection
- U.2

Environmental

Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing

Acoustics

Idle (Typical)
- 0.0 bels
Seek (Typical)
- 0.0 bels

Notes

This device requires one of the following host enclosures: Mercury Helios 3S with U.2 NVMe Interchange System, or ThunderBay Flex 8 (top 4 bays only). The computers listed below are compatible with these host enclosures.

Additional Information

Manufacturer Information

Manufacturer P/N

OWCU2SHUTTLE04

UPC / EAN

810586036795
