Sonnet eGPU Breakaway Box 750

Name: Sonnet eGPU Breakaway Box 750
Brand: Sonnet
SKU: GPU-750W-TB3
Price: 829.99 AUD
Availability: OutOfStock

SKU GPU-750W-TB3

by Sonnet

$829.99 - $829.99

$829.99

$829.99 - $829.99

$829.99

Sold out

End of Line

Quantity

$11.90 flat-rate shipping under 5kg (excl. NT)

Australian owned & operated since 2005

4.8-star Google - excellent reviews on other platforms

Description

Transform Your Thunderbolt Computer Into a Graphics Workstation

Whether you’re editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics or low-power discrete GPUs that bottleneck performance when performing these tasks. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The eGPU Breakaway™ Box 750 and 750ex Thunderbolt 3 to GPU PCIe card expansion systems boost your eGPU-compatible computer’s graphics performance by connecting a high-performance GPU card to your computer via a single cable.

Future-proof Upgrade

With each new generation of GPU cards, users can look forward to a step (or leap) forward in performance. Less predictable is how much power they will require to operate—better performance frequently requires increased power. For eGPU users, power consumption can be a concern. Don’t limit your future card choices—choose a Sonnet eGPU Breakaway Box 750 Equipped with 750W power supplies, these Sonnet chassis easily support the highest power demands of latest GPUs and have plenty of extra power to support GPU cards from generations to come.

No Compromise GPU Card Choice

eGPU Breakaway Box 750 systems are designed specifically to accommodate the most power-hungry double-width GPU cards. They support Thunderbolt-compatible cards(1) with popular GPU chipsets—such as AMD Radeon™ RX series (including VEGA GPUs); and NVIDIA® GeForce® series and TITAN GPUs. Even the latest pro cards—AMD Radeon Pro and NVIDIA Quadro® GPUs—are supported! (Note that macOS® supports only AMD GPU cards in eGPU systems, while Windows® supports AMD and NVIDIA cards.) With a GPU card installed, a Breakaway Box functions as a simple plug-in upgrade to significantly accelerate the demanding needs of your video production workflow.

See the list of supported GPU Cards (PDF) ❯

4K to 8K Workflows –

Connect Two or More Breakaway Boxes

Many task times on supported applications—such as Adobe® Premiere® Pro, DaVinci Resolve™, and Maxon Cinema 4D™, to name a few—can be cut significantly with one eGPU Breakaway Box connected. But, for computers with multiple Thunderbolt ports, times can be slashed when two, three, or four Breakaway Boxes are employed. Connecting one or more eGPUs can multiply your computer’s graphics processing power, enabling it to handle 4K, 5K, 6K, and 8K workflows more efficiently. Plus, a computer’s onboard discrete GPU also contributes to the aggregate performance.

Designed for GPU Cards, Also Supports Other Demanding PCIe Cards

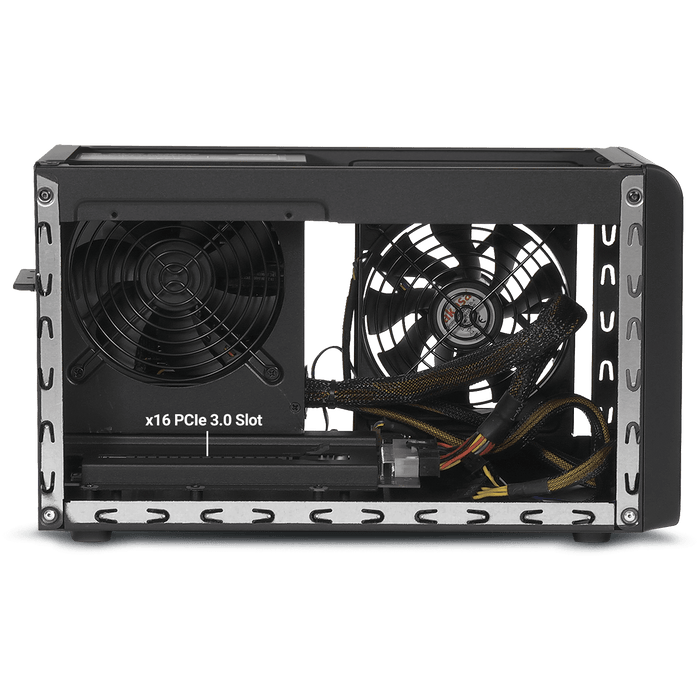

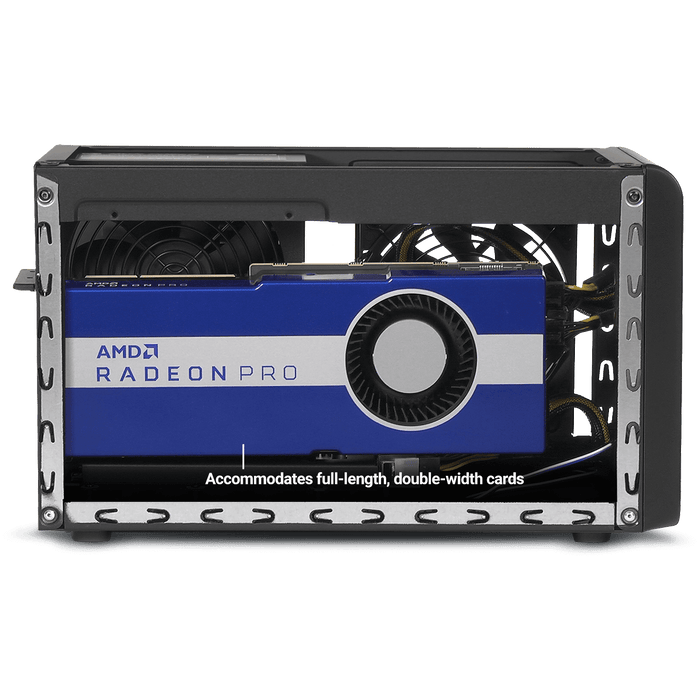

The Breakaway Box’s single x16 PCIe 3.0 slot accommodates full-length, double-width cards, and its 750W power supply supports trouble-free operation.

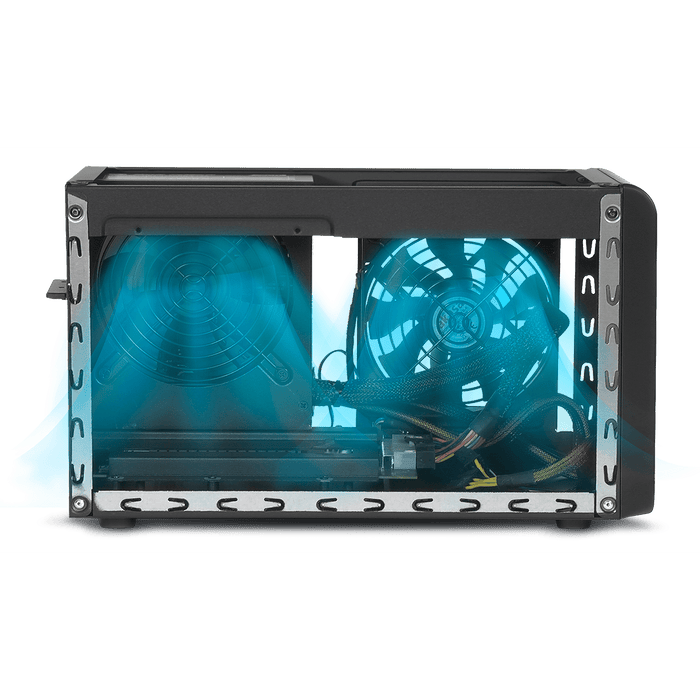

Coolest & Quietest Add-your-own-card eGPU System Available

With its large variable-speed temperature-controlled fan that quietly and effectively cools the installed card, the eGPU Breakaway Box can be comfortably used in noise-sensitive working environments. Its single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.

Graphic-Intensive Gaming Support

There’s no need for you to carry a heavy, loud, and hot-running gaming laptop to have a great gaming experience—just plug in a Breakaway Box and add the GPU power you want when you need it! A Breakaway Box is ideal for empowering graphic-intensive gaming on an Intel® processor-based MacBook Air® or 13-inch MacBook Pro®, Ultrabook™ and other thin/light notebook computers that otherwise would deliver a poor gaming experience. Accelerated graphics can either be displayed on one, two, or more external monitors, or on your notebook’s own display panel(4). Best of all, you can upgrade the GPU card in the Box to keep up with the latest in GPU technology (unlike with gaming laptops).

Key Features

Boosts Graphics Performance
Connects a high-performance GPU card to your computer with Thunderbolt 3 ports.

Cuts Application Task Times
Enables GPU acceleration to significantly improve editing, rendering, color grading, animation, and special effects performance.

750W Power Supply
Support the power requirements of the latest compatible GPU cards; future-proof design handles higher power requirements of cards to come.

Supports Many of the Latest GPU Cards
Includes AMD Radeon VII, RX, RX Vega, Pro W and Pro WX models; and NVIDIA GeForce RTX series, TITAN, and Quadro models.

Multi-eGPU Acceleration Support
Connect two, three, or four eGPU Breakaway Boxes to slash task times on supported applications.

Supports Non-GPU PCIe Cards
Supports Thunderbolt-compatible full-length, full-height, single- or double-width cards –perfect for pro audio I/O and DSP cards and pro video I/O and transcoding cards.

Quietest Configurable eGPU System Available
Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools whatever card you install.

Choice of Models
Both models support the same GPU cards, include the same power supply, and provide the same portable computer charging support; the 750ex adds additional connectivity.

Single-Port 40Gbps Thunderbolt 3 Interface
Ensures full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.

Thunderbolt Certified
Certified for Thunderbolt for use with Mac® computers.

Mac and WIndows Compatible
Compatible with Mac and Windows computers with Thunderbolt 3 ports.

Specifications

Mac Compatibility

- macOS Big Sur compatible
- Mac with Thunderbolt 3 ports and macOS 10.13.6+

Automatically accelerates AMD RX eGPU connected monitors, and games and select apps run on those monitors(3)
macOS drivers for NVIDIA GPU cards are not compatible with Thunderbolt Technology
One eGPU Breakaway Box (WX9100, for example) supports up to six external 4k monitors @60Hz

- Mac with Thunderbolt 3 ports and macOS 10.14.6+ (Mac mini see note 10)

Additional Features:

Support added for AMD RX 560 and RX 590 AMD GPUs
Accelerate games and applications run on the internal display (or Thunderbolt Display) by selecting the App, selecting “Get Info”, and checking “Prefer External GPU”(4)
Windows 10 support under Parallels Desktop for Mac(5)
Support for two eGPU Breakaway Box eGPUs and up to twelve external 4k monitors @60Hz

- Mac with Thunderbolt 3 ports and macOS 10.15.7+

Additional Features:

Support added for AMD RX 5500, 5500 XT, 5600, 5600 XT, 5700, 5700XT

- Apple® M1 Macs do not yet support eGPUs
- Supports VIVE and VIVE Pro with AMD Radeon RX480 or better(6)
- External GPUs not supported by Thunderbolt 2 or Thunderbolt equipped Macs(7)
- External GPUs not supported on Windows 10 under Boot Camp
- Certified with all generation Thunderbolt Macs to support Thunderbolt-compatible non-GPU cards, such as AVID HDX(8) and RED ROCKET-X

Windows Compatibility

- Windows PC with a Thunderbolt 3 port
- GPU card use requires an eGPU-enabled Windows PC
- Windows 10 (64-bit Edition, Version 1809 or greater)
- Supports VIVE and VIVE Pro with NVIDIA GTX 1060 or AMD Radeon RX 480 or better(6)

Monitor Compatibility

- 1080P monitors using DP or HDMI ports

- 4K and 5K monitors using DP or HDMI ports
- 4K, 5K, and 6K Thunderbolt 3 monitors require a GPU card with USB-C output(12)
- LG UltraFine 4K and 5K displays
- Apple Pro Display XDR 6K
- 49” 5120x1440 Dual QHD monitors using a DP port:
- Dell Ultrasharp 49 Curved Monitor U4919DW
- LG 49 inch 32:9 UltraWide Dual QHD IPS Curved LED Monitor 49WL95C-W
- Philips Brilliance 32:9 Superwide Curved LCD Display 499P9H/27
- Samsung 49” CRG9 Dual QHD Curved QLED Gaming Monitor LC49RG90SSNXZA

8K displays are compatible with Windows(11), but not currently compatible with macOS

Graphics Card Compatibility Chart

List of AMD and NVIDIA GPU cards arranged by card manufacturer, compatibility determined by the card’s power requirements, and Breakaway Box model’s power capabilities

PDF

Hardware

Part Number

GPU-750W-TB3 (eGPU Breakaway Box 750)

Warranty

2-year

Form Factor

Desktop Thunderbolt 3 to PCIe card expansion system

External Connectors

Part No. GPU-750W-TB3
One Thunderbolt 3 port
Power (C14-type)
Part No. GPU-750WEX-TB3
One Thunderbolt 3 port
Power (C14-type)
Four USB Type A
One RJ45

Internal Connectors

Two 8-pin (6+2 pin) power connectors

Expansion Slot

One x16 mechanical (x4 electrical, Thunderbolt 3 spec) PCIe 3.0

PCIe Card Supported

One full-length, full-height, double-width PCIe card

Power Supply

Universal 750W, 100-240V AC, 50-60 Hz
Supports cards requiring up to 375W of continuous power plus an additional 100W peak power

Power Delivery

GPU-750-TB3 provides laptop charging up to 100W

Standy Power(9)

Consumes 8.5W (sleep) / 14W (idle)

Operating Temperatures

0˚C to 35˚C (32˚F to 95˚F)

Dimensions (WxDxH)

7.25 x 13.38 x 8 in. (18.5 x 34.0 x 20.2 cm)

Weight

7.1 lbs (3.2 kg)

Compliance

RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2

Package Contents

Part Number GPU-750W-TB3
eGPU Breakaway Box 750 enclosure
Power cord
0.7-meter Thunderbolt 3 (40Gbps, 100W) cable
Documentation
Part Number GPU-750WEX-TB3
eGPU Breakaway Box 750ex enclosure
Power cord
0.7-meter Thunderbolt 3 (40Gbps, 100W) cable
Documentation

Support Links

Support Knowledge Base

Drivers, Documentation, FAQs

Product Manual

Step-by-step card installation instructions

PDF

External Graphics Setup and Usage Guide (macOS)

PDF

External Graphics Setup and Usage Guide (Windows 10)

PDF

Technical Notes

eGPU Breakaway Box models support up to a standard full-height, full-length, double-width card. Cards with three power connectors are not supported.
While each eGPU Breakaway Box 750 model features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. Full performance also requires the use of the includedThunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables. eGPU Breakaway Box 750ex divides bandwidth between the installedGPU card and connected peripherals when connected peripherals are operating.
A few professional applications (such as DaVinci Resolve or Cinema 4D) have menu options to use the external GPU even if the app is run on the internal monitor. Final Cut Pro requires 10.14.1+ for external GPU acceleration.
Ultimate gaming performance is attained by using a display attached to eGPU.
See Using eGPU with Parallels Desktop for Mac.
Not compatible with VIVE Wireless Adapter.
Neither Apple, nor AMD, nor Sonnet support eGPUs on Thunderbolt 2 or Thunderbolt Macs. There is a method to support Thunderbolt 2 and Thunderbolt Macs from Purge-Wrangler. Not every Mac is supported. If your Mac has a discrete NVIDIA eGPU, this method will not work. If you have any trouble, our support teams cannot assist you.
Power adapter cable for Avid Pro Tools | HDX card sold separately.
Plus power delivery to laptop, if activated.
Under macOS 10.14.6, a Mac mini is compatible with a Breakaway Box with Vega 56, Vega 64, WX 8200, and WX 9100. A Mac mini with a Breakaway Box with an RX560/570/580/590 must be booted with a monitor connected to the Mac mini’s HDMI port. The monitor may be moved to the GPU after booting. This anomaly is fixed in macOS 10.15.7+.
8K displays require a GPU card that supports 8K displays.

For example, the AMD Radeon Pro W5700 has a USB-C Alt-Mode DisplayPort output.
