OWC StudioStack - Thunderbolt 5 Stackable Storage and Connectivity Expansion Enclosure

Name: OWC StudioStack - Thunderbolt 5 Stackable Storage and Connectivity Expansion Enclosure
Brand: OWC
SKU: OWCTB5SSH00S00
Price: 679.99 AUD
Availability: InStock

SKU OWCTB5SSH00S00

by OWC

$679.99 - $679.99

$679.99

$679.99 - $679.99

$679.99

New

This product normally ships within 1-2 weeks

Quantity

Shipping cost is $11.90 (flat rate) under 5kg (excluding NT).

Description

OWC StudioStack

Thunderbolt™ 5 Stackable Storage and Connectivity Expansion Enclosure

Stack Your Studio. Unleash up to 32TB of Thunderbolt 5 Powered Storage.

Stacked. Jacked. Mac.

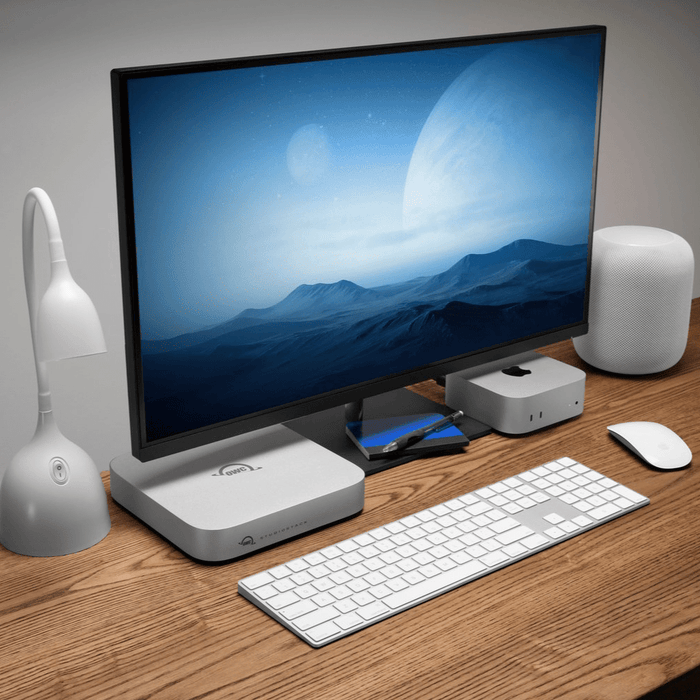

Pump up your Mac Studio or Mac mini with the fastest and highest capacity stackable hybrid storage innovation on the planet. Now you can flex your true form…with up to 64x MORE storage capacity1, up to 6302MB/s real-world speed that rivals the latest Mac Studio models, and a six port Thunderbolt/USB-A hub for additional connectivity possibilities. Show off all that jacked up brawn in a buff, aircraft grade aluminum design that nestles perfectly on top or underneath your mighty Mac.
Max out your capacity by building a workflow shredding monster with your own NVMe SSD and SATA HDD or go all gain no pain with a ready-to-run dual drive solution. Either choice lets you expand your data storage muscle to gigantic proportions with performance that rips.

Work at Internal Drive Speed

Edit 8K video, run AI models, and access files with up to 6302MB/s real-world performance that matches your Mac Studio's internal SSD2

Protect Your Work

Aircraft-grade aluminum construction safeguards your drives while dissipating heat to maintain consistent peak performance

Access Your Entire Library

Put all your projects, assets, and archives at your fingertips with up to 8TB of fast NVMe storage plus 24TB of high-capacity HDD space

Connect It All

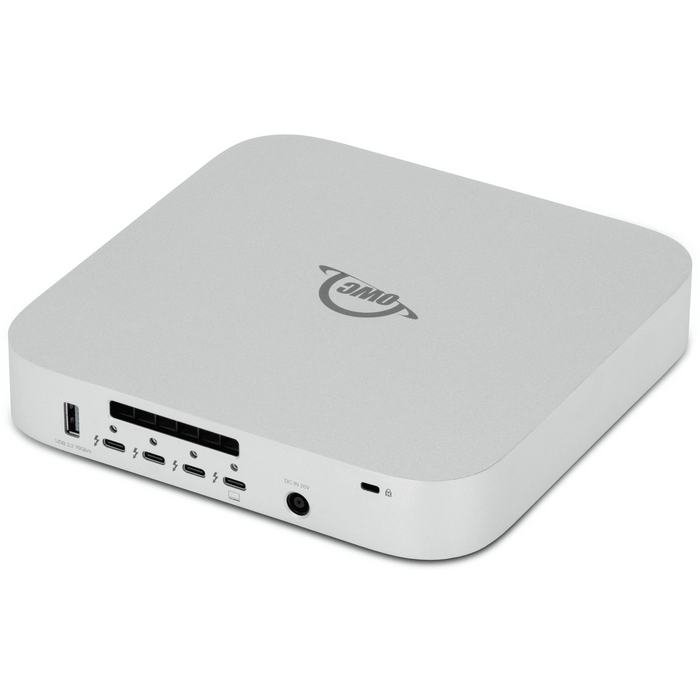

Three Thunderbolt 5 ports and three USB-A ports let you run multiple displays, drives, and devices simultaneously without swapping cables

Integrate Easily

Compatible with your Thunderbolt 5/4, USB4, or Thunderbolt 3 Mac or PC right out of the box

Maintain Your Focus

Work distraction-free with a smart adaptive fan that activates only when needed.

Grows With You

Easily upgrade to higher-capacity drives when your needs change

Ready To Run

Hit the ground running at top speed with the included Thunderbolt 5 80Gb/s cable

All Gain. No Lag Pain.

Powered by advanced Thunderbolt 5 technology, you can use StudioStack to keep pace with the latest Mac Studio computers’ internal storage speed:

Muscle Memory Redefined

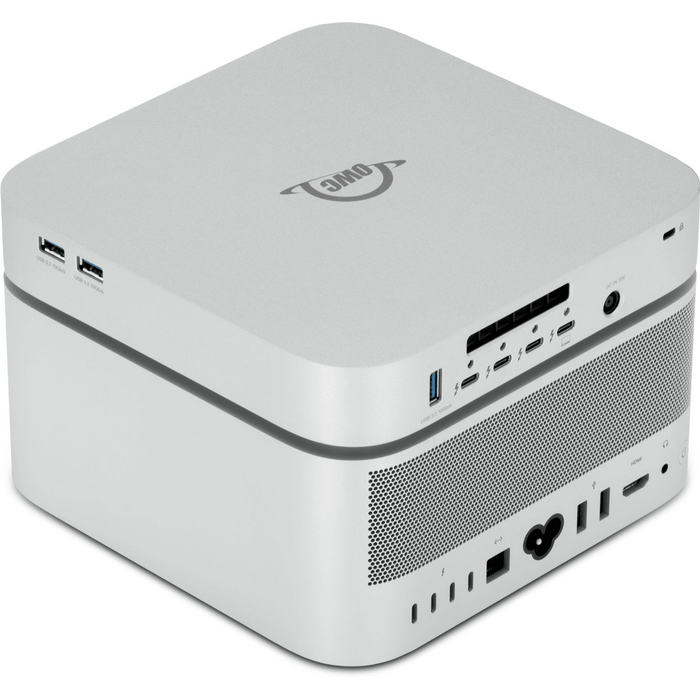

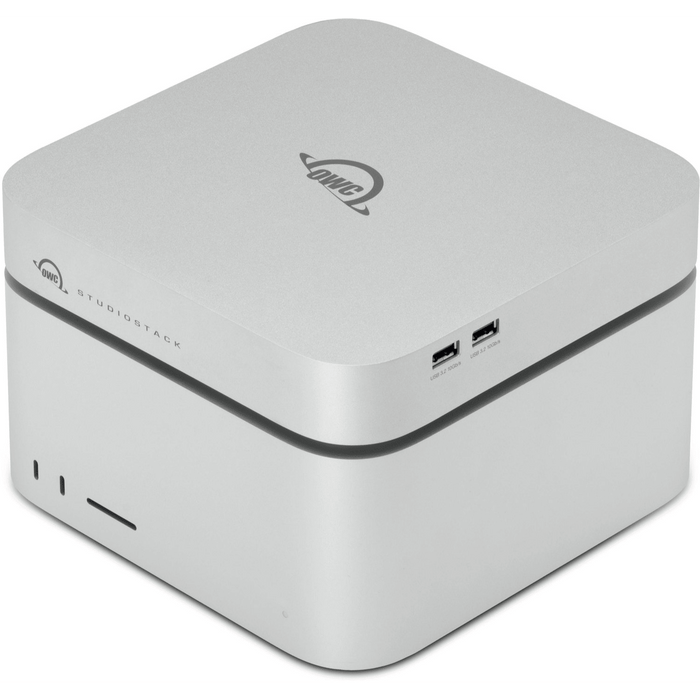

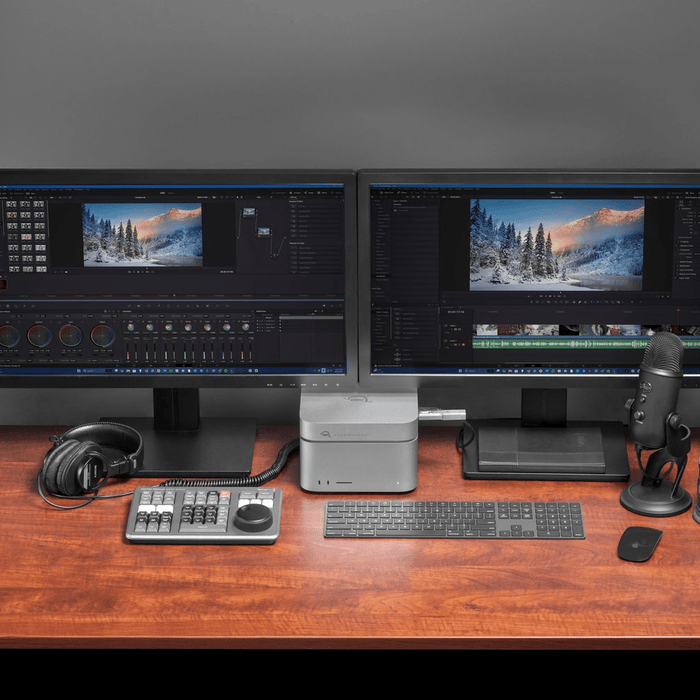

Designed to match the sleek physique of the Mac Studio, this mass gainer redefines how to crush storage, connectivity, and display needs by delivering supersized gains in every byte. StudioStack is ideal for:

Creative professionals with photo/video/CGI/audio workflows that can take advantage of a dual-drive hybrid storage solution:
- NVMe: Ultra-fast performance for seamless editing, compositing work, and cached 3D simulations.
- HDD: large storage for Lightroom libraries, media files, 3D assets, archival footage, inactive projects, and project/file backups.
General users seeking to expand their Mac Studio storage and connectivity capabilities while matching the performance and design of their machine.
AI engineers and data scientists needing fast storage and large capacity to store and run large LLMs with ease and greatly expand the non-upgradeable 512GB storage existing in their Mac Studio.
Anyone wanting to add several Thunderbolt displays to a Mac Studio and expand the machine’s built-in storage.³

Form That Flexes Beyond Today

Engineered to support any NVMe M.2 2280 SSD and any 3.5" SATA HDD, this compact powerhouse gives you the ultimate flexibility to choose the drive configuration you want today—including blazing fast highly reliable OWC Aura SSDs with up to a massive 8TB capacity. When tomorrow’s 16TB and larger NVMe SSDs hit the scene, you can easily boost your StudioStack’s capacity.

Lift Beyond Your Limit

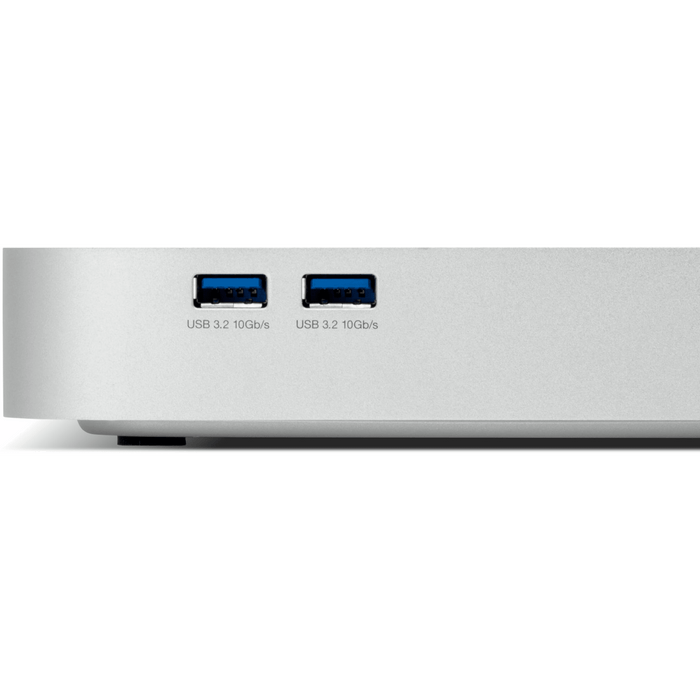

With StudioStack’s three Thunderbolt 5 and three USB-A ports, you’ll lift the connectivity limit of your Mac mini M1/M2 machine to a new PR. You’ll also love how easy and fast the two side-located USB-A ports make plugging in flash drives, card readers, and other frequently used devices instead of blindly fumbling around behind your machine.

OWC Thunderbolt Cable Included

OWC StudioStack comes with a certified 0.3M OWC Thunderbolt 5 (USB-C) Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt 5 (USB-C) Cables are the perfect choice.

StudioStack with 32TB total capacity (8TB NVMe SSD and 24TB HDD) vs 512GB Mac Studio 2025
6302MB/s sequential read/write peak speed based on testing an 8TB OWC Aura Ultra IV SSD equipped StudioStack connected to a Mac Studio M3 Ultra running AJA System Test (4K-Full resolution, 64GB file size, 16bit RGBA codec, single file test). Actual performance may vary depending on the installed drive and the application used.
Thunderbolt 5 can support up to three displays from a single computer host port dependent on the host computer's capability. This includes up to three 6K or lower resolution displays, three 8K displays @ 60Hz, or two 8K displays @ 120Hz. Presently, Apple has enabled support for a maximum of two native displays per connected Apple Mac Thunderbolt host port. Software driver based technologies, such as DisplayLink (as supported by the OWC USB-C Dual HDMI 4K Display Adapter), may enable additional display support.

Highlights

Work at Internal Drive Speed: Edit 8K video, run AI models, and access files with up to 6302MB/s real-world performance that matches your Mac Studio's internal SSD¹
Access Your Entire Library: Put all your projects, assets, and archives at your fingertips with up to 8TB of fast NVMe storage plus 24TB of high-capacity HDD space
Connect It All: Three Thunderbolt 5 ports and three USB-A ports let you run multiple displays, drives, and devices simultaneously without swapping cables
Widely Compatible: Use with Thunderbolt 5/4, USB4 Macs and PCs, and Thunderbolt 3 Macs²
Protect Your Work: Aircraft-grade aluminum construction safeguards your drives while dissipating heat to maintain consistent peak performance
Maintain Your Focus: Work distraction-free with a smart adaptive fan that activates only when needed
Grows With You: Easily upgrade to higher-capacity drives when your needs change
Ready To Run: Hit the ground running at top speed with the included Thunderbolt 5 80Gb/s cable

Includes

(1) OWC StudioStack External Storage Enclosure
(1) 0.3M (11.8") Thunderbolt 5 Cable
(1) External Power Supply
(1) 1.0M (39") US Power Cable (3-Prong IEC 05)
(1) OWC StudioStack Getting Started QR Insert Card
(1) Support Manual for OWC StudioStack (digital)
1 Year OWC Limited Warranty

Specifications

Category	Specification	Category	Specification
Storage Bays	(1) M.2 2280 NVMe (No heatsink) (1) 3.5"/2.5" SATA (USB Protocol)	Data Speeds	TB5: 80Gb/s USB4: 40Gb/s
TB5 Ports	(1) Host Upstream (3) Downstream Ports	Power Output	60W Host Power Delivery
USB Ports	(3) USB 3.2 Gen 2 Type-A (10Gb/s)	Power Supply	180W External (20V, 9A)
Displays	2x 8K @ 120Hz or 3x 4K @ 144Hz	RAID Support	RAID 0, 1, and Independent
Mac OS	macOS 14, 15, 26 (Tahoe)	Cooling	40mm PWM Fan
PC OS	Windows 11 (22H2 or later)	Enclosure	Silver Aluminum
Mobile OS	iPadOS 17, 18, 26	Dimensions	19.7 x 19.7 x 3.7 cm
Chipsets	Barlow Ridge JHL9480 (TB5) Fresco Logic FL5801 (USB)	Weight	800.0 g (1.76 lbs)

Additional Information

Manufacturer Information

Manufacturer P/N

OWCTB5SSH00S00

UPC / EAN

810179175832
